# NEWCOM, INC.
8X ATAPI CD-ROM
Device Type CD-ROM
Interface ATAPI
Spin Rate 8x
(Read/Write)
Formats Supported CD-DA, CD-ROM (Mode 1 & Mode 2), Photo-CD,
Read Video CD, Red & Yellow Book, CD-Extra,
Karaoke CD

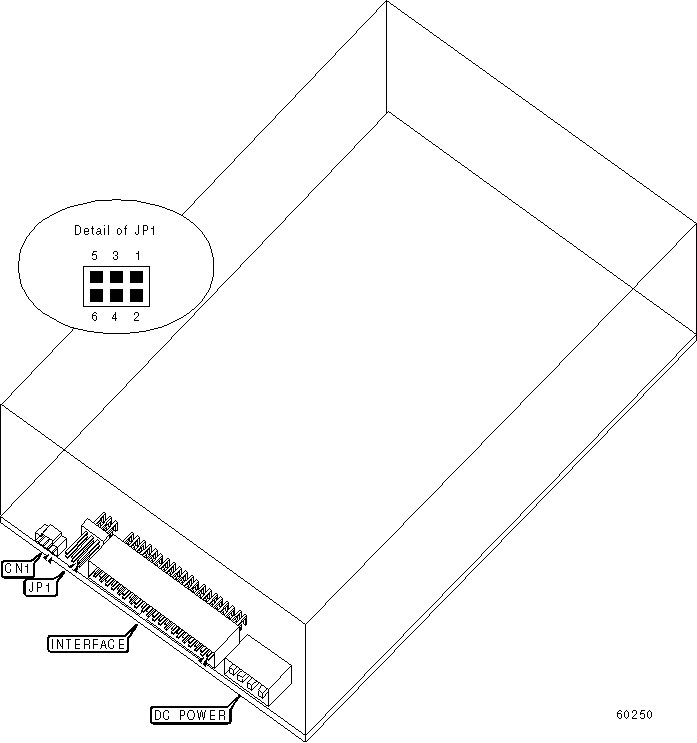

View Top
(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Analog audio connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ATAPI MASTER/SLAVE |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------------------+-------------------|
| ยป | Drive is slave | Pins 3 & 4 closed |
|---+------------------------------------+-------------------|
| | Drive is master | Pins 1 & 2 closed |
|---+------------------------------------+-------------------|
| | Master/slave determined by cable | Pins 5 & 6 closed |
| | select | |
+------------------------------------------------------------+
