       # NEC TECHNOLOGIES, INC.

          CDR-1410, CDR-1410A

          Device Type       CD-ROM
          Interface         SCSI-2
          Spin Rate         8x
          Formats Supported CD-XA (mode 2, Form 1 & Form 2), CD Plus,
                            CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2),
                            Photo-CD, Video CD, Audio CD

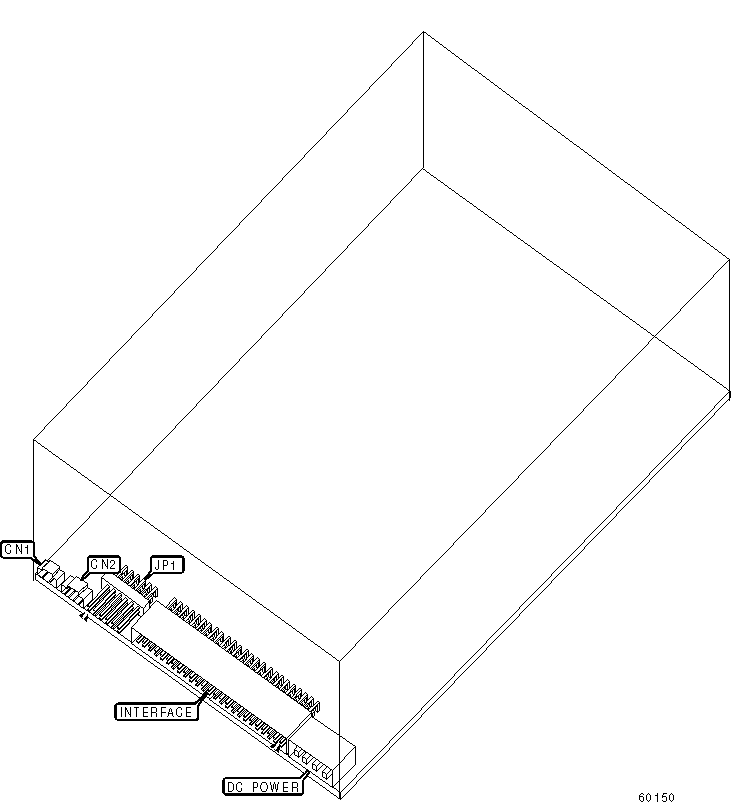

          View              Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | Audio line out       |  CN1  | Audio line out      |  CN2  |
          | (Digital)            |       | (Analog)            |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Setting                 | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  | JP1/4 |   Open    |
          |---+------------------------------------+-------+-----------|
          | » | Termination disabled               | JP1/5 |   Open    |
          |---+------------------------------------+-------+-----------|
          |   | Termination enabled                | JP1/5 |  Closed   |
          |---+------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  | JP1/6 |   Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          |    Drive ID    |    JP1/1     |    JP1/2     |    JP1/3    |
          |----------------+--------------+--------------+-------------|
          |     |    O     |     Open     |     Open     |    Open     |
          |-----+----------+--------------+--------------+-------------|
          |     |    1     |    Closed    |     Open     |    Open     |
          |-----+----------+--------------+--------------+-------------|
          |     |    2     |     Open     |    Closed    |    Open     |
          |-----+----------+--------------+--------------+-------------|
          | »   |    3     |    Closed    |    Closed    |    Open     |
          |-----+----------+--------------+--------------+-------------|
          |     |    4     |     Open     |     Open     |   Closed    |
          |-----+----------+--------------+--------------+-------------|
          |     |    5     |    Closed    |     Open     |   Closed    |
          |-----+----------+--------------+--------------+-------------|
          |     |    6     |     Open     |    Closed    |   Closed    |
          |-----+----------+--------------+--------------+-------------|
          |     |    7     |    Closed    |    Closed    |   Closed    |
          +------------------------------------------------------------+
