       # SEAGATE TECHNOLOGY, INC.

          PEREGRINE 4586XP

          Device Type             External Tape Drive
          Interface               SCSI-2
          Format                  DDS-2
          Sustained Transfer Rate 400 KBPS (800 KBPS compressed)
          Size                    5.25 in. half height

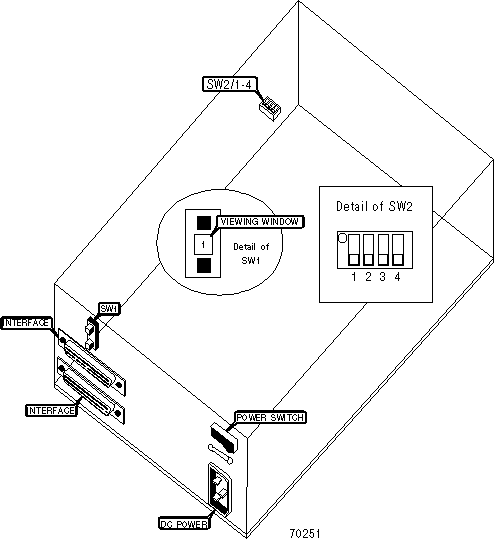

          View                    Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                 Setting                 | Label | Position |
          |-----------------------------------------+-------+----------|
          |   | Drive mounted verticaly             | SW2/1 |    On    |
          |---+-------------------------------------+-------+----------|
          |   | Drive mounted horizontaly           | SW2/1 |   Off    |
          |---+-------------------------------------+-------+----------|
          |   | Automatic insertion of first        | SW2/2 |    On    |
          |   | cartridge enabled                   |       |          |
          |---+-------------------------------------+-------+----------|
          |   | Automatic insertion of first        | SW2/2 |   Off    |
          |   | cartridge disabled                  |       |          |
          |---+-------------------------------------+-------+----------|
          | » | Factory configured - do not alter   | SW2/3 | Reserved |
          |---+-------------------------------------+-------+----------|
          | » | Factory configured - do not alter   | SW2/4 | Reserved |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     SCSI ID SELECTION                      |
          |------------------------------------------------------------|
          | Note: SCSI ID is selected by activating SW1 until the      |
          | desired number is displayed in the viewing window.         |
          +------------------------------------------------------------+
