# QUANTUM CORPORATION
DLT 4000 (INTERNAL DIFFERENTIAL)
Device Type Internal Tape Drive
Interface SCSI-2 Fast/Wide/Differential
Format DLT
Sustained Transfer Rate 1.5 MBPS
Size 5.25 in. full height

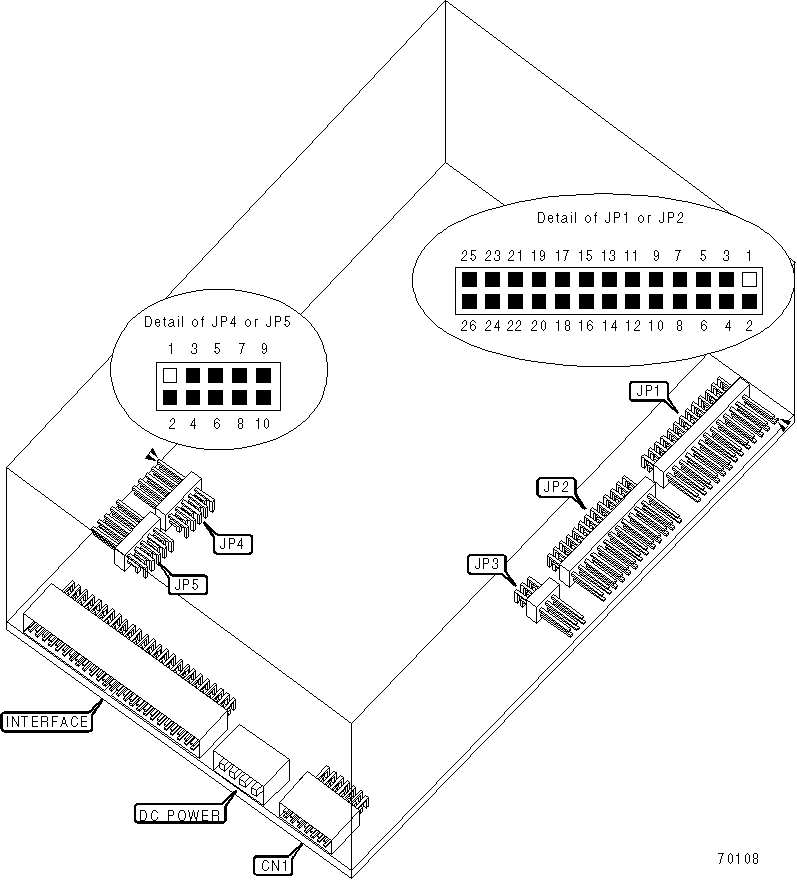

View Top
(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Proprietary Power connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------+----------+--------------|
| » | Factory configured - do not | JP1/Pins | Unidentified |
| | alter. | 1 & 2 | |
|---+------------------------------+----------+--------------|
| » | Factory configured - do not | JP1/Pins | Unidentified |
| | alter. | 5 - 26 | |
|---+------------------------------+----------+--------------|
| » | Factory configured - do not | JP2/Pins | Unidentified |
| | alter. | 1 - 26 | |
|---+------------------------------+----------+--------------|
| » | Factory configured - do not | JP3/Pins | Unidentified |
| | alter. | 1 - 6 | |
|---+------------------------------+----------+--------------|
| » | Remote ID enabled | JP4/Pins | Closed |
| | | 1 & 2 | |
|---+------------------------------+----------+--------------|
| | Remote ID disabled | JP4/Pins | Open |
| | | 1 & 2 | |
|---+------------------------------+----------+--------------|
| | Parity check disabled | JP4/Pins | Closed |
| | | 3 & 4 | |
|---+------------------------------+----------+--------------|
| | Parity check enabled | JP4/Pins | Open |
| | | 3 & 4 | |
|---+------------------------------+----------+--------------|
| » | Factory configured - do not | JP5/Pins | Unidentified |
| | alter. (Loader Connector) | 1 - 10 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRIVE SELECT ID |
|------------------------------------------------------------|
| Drive ID | JP4/Pins 5 & | JP4/Pins 7 & | JP4/Pins 9 & 10 |
| | 6 | 8 | |
|------------+--------------+--------------+-----------------|
| 0 | Open | Open | Open |
|------------+--------------+--------------+-----------------|
| 1 | Open | Open | Closed |
|------------+--------------+--------------+-----------------|
| 2 | Open | Closed | Open |
|------------+--------------+--------------+-----------------|
| 3 | Open | Closed | Closed |
|------------+--------------+--------------+-----------------|
| 4 | Closed | Open | Open |
|------------+--------------+--------------+-----------------|
| 5 | Closed | Open | Closed |
|------------+--------------+--------------+-----------------|
| 6 | Closed | Closed | Open |
|------------+--------------+--------------+-----------------|
| 7 | Closed | Closed | Closed |
|------------------------------------------------------------|
| Note: Pins 1 & 2 of JP4 are to be closed when selecting |
| SCSI IDs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TERMINATION POWER SELECTION |
|------------------------------------------------------------|
| Setting | JP1/Pins 3 & 4 |
|-------------------------------------------+----------------|
| » | TERMPWR supplied by drive | Closed |
|---+---------------------------------------+----------------|
| | TERMPWR supplied by SCSI interface to | Open |
| | drive | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MANUFACTURERS RECOMMENDED MEDIA |
|------------------------------------------------------------|
| Tape | Capacity Without | Capacity With |
| | Compression | Compression |
|----------------+---------------------------+---------------|
| DLT tape III | 10GB | 20GB |
| 1100ft. | | |
|----------------+---------------------------+---------------|
| DLT tape IIIxt | 15GB | 35GB |
| 1800ft. | | |
|----------------+---------------------------+---------------|
| DLT tape IV | 20GB | 40GB |
| 1800ft. | | |
+------------------------------------------------------------+
(IMG) IMG 2
+------------------------------------------------------------+

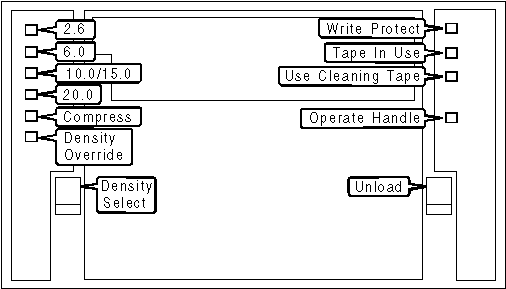

| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----------+--------+----------------+----------------------|
| Write | Orange | On | Cartridge is |
| Protect | | | write-protected. |
|-----------+--------+----------------+----------------------|
| Write | Orange | Off | Cartridge is |
| Protect | | | write-enabled. |
|-----------+--------+----------------+----------------------|
| Tape In | Yellow | Blinking | Cartridge is loaded |
| Use | | | and tape is moving. |
|-----------+--------+----------------+----------------------|
| Tape In | Yellow | On | Cartridge is loaded |
| Use | | | and ready for use. |
|-----------+--------+----------------+----------------------|
| Use | Yellow | On | Drive head requires |
| Cleaning | | | cleaning, or tape is |
| Tape | | | bad. |
|-----------+--------+----------------+----------------------|
| Use | Yellow | Remains on | Cleaning tap |
| Cleaning | | after cleaning | attempted to clean |
| Tape | | tape unloaded | drive head, tape |
| | | | expired, cleaning |
| | | | not performed. |
|-----------+--------+----------------+----------------------|
| Use | Yellow | Turns on when | Problem data |
| Cleaning | | data cartridge | cartridge. Attempt |
| Tape | | loaded after | different cartridge. |
| | | cleaning | |
|-----------+--------+----------------+----------------------|
| Use | Yellow | Off | Cleaning complete, |
| Cleaning | | | or cleaning |
| Tape | | | unnecessary. |
|-----------+--------+----------------+----------------------|
| Operate | Green | On | Okay to operate |
| Handle | | | cartridge |
| | | | insert/release |
| | | | handle |
|-----------+--------+----------------+----------------------|
| Operate | Green | Off | Do not operate |
| Handle | | | cartridge |
| | | | insert/release |
| | | | handle |
|-----------+--------+----------------+----------------------|
| Operate | Green | Blinking | Close handle and |
| Handle | | | wait for steady |
| | | | green indication |
| | | | before inserting |
| | | | cartridge. |
|-----------+--------+----------------+----------------------|
| 2.6 | Yellow | On | Indicates tape is |
| | | | recorded in 2.6GB |
| | | | format. |
|-----------+--------+----------------+----------------------|
| 2.6 | Yellow | Blinking | Indicates tape is |
| | | | recorded in another |
| | | | density selected for |
| | | | a write from BOT. |
|-----------+--------+----------------+----------------------|
| 6.0 | Yellow | On | Indicates tape is |
| | | | recorded in 6.0GB |
| | | | format. |
|-----------+--------+----------------+----------------------|
| 6.0 | Yellow | Blinking | Indicates tape is |
| | | | recorded in another |
| | | | density selected for |
| | | | a write from BOT. |
|-----------+--------+----------------+----------------------|
| 10.0/15.0 | Yellow | On | Indicates tape is |
| | | | recorded in 10.0GB |
| | | | format if DLT™ tape |
| | | | III is used. |
| | | | Indicates tape is |
| | | | recorded in 15.0GB |
| | | | format if DLT™ tape |
| | | | IIIxt is used. |
|-----------+--------+----------------+----------------------|
| 10.0/15.0 | Yellow | Blinking | Indicates tape is |
| | | | recorded in another |
| | | | density selected for |
| | | | a write from BOT. |
|-----------+--------+----------------+----------------------|
| 20.0 | Yellow | On | Indicates tape is |
| | | | recorded in 20.0GB |
| | | | format. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------------+----------+------------+-----------------------|
| 20.0 | Yellow | Blinking | Indicates tape is |
| | | | recorded in another |
| | | | density selected for |
| | | | a write from BOT. |
|------------+----------+------------+-----------------------|
| Compress | Yellow | On | Compression mode |
| | | | enabled (10.0, 15.0, |
| | | | and 35.0GB densities |
| | | | only). |
|------------+----------+------------+-----------------------|
| Compress | Yellow | Off | Compression mode |
| | | | disabled. |
|------------+----------+------------+-----------------------|
| Density | Yellow | On | Density from front |
| Override | | | panel selected. |
| | | | Density to be |
| | | | selected by the host |
| | | | (automatic). |
|------------+----------+------------+-----------------------|
| Density | Yellow | Off | You are in density |
| Override | | | selection mode. |
|------------------------------------------------------------|
| Note: All four right side or all seven left side |
| indicators ‘On’ designates that the Power-on self-test |
| (POST) is starting. All four right side or all seven left |
| side indicators ‘Blinking’ designates that an error has |
| occurred in the POST; clear the error by pressing the |
| unload button, or turn drive power off and then on again. |
| If error remains service is required. |
+------------------------------------------------------------+
