       # HEWLETT-PACKARD COMPANY

          HP C1534A

          Device Type             Internal Tape Drive
          Interface               SCSI-2
          Format                  DDS
          Sustained Transfer Rate 183 KBPS
          Size                    3.5 in. half height
          View                    Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Setting               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | » | Factory configured - do not     |  JP5  | Unidentified |
          |   | alter                           |       |              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          |   Drive ID    |     JP1      |     JP2      |     JP3      |
          |---------------+--------------+--------------+--------------|
          |       0       |     Open     |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       1       |     Open     |     Open     |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       2       |     Open     |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |       3       |     Open     |    Closed    |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       4       |    Closed    |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       5       |    Closed    |     Open     |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       6       |    Closed    |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |       7       |    Closed    |    Closed    |    Closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              MANUFACTURERS RECOMMENDED MEDIA               |
          |------------------------------------------------------------|
          |             Tape              |          Capacity          |
          |-------------------------------+----------------------------|
          |    60 meter DDS cartridge     |           1.3GB            |
          |-------------------------------+----------------------------|
          |    90 meter DDS cartridge     |           2.0GB            |
          +------------------------------------------------------------+

 (IMG) IMG 2


          +------------------------------------------------------------+

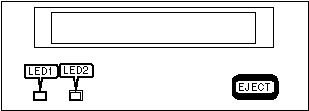

          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |LED1(Green)|  LED2   |              Condition               |
          |           |(Yellow) |                                      |
          |-----------+---------+--------------------------------------|
          |    Off    |   Off   |  No power/drive Idle, no cartridge   |
          |-----------+---------+--------------------------------------|
          |    On     |   Off   |    Cartridge loaded, No Activity     |
          |-----------+---------+--------------------------------------|
          |   Flash   |   Off   |      Cartridge loaded, Activity      |
          |-----------+---------+--------------------------------------|
          |   Pulse   |   Off   |  Loading/Unloading/Ejectin/Power-On  |
          |-----------+---------+--------------------------------------|
          |    Off    |   On    |          Self Test Failure           |
          |-----------+---------+--------------------------------------|
          |    Off    |  Pulse  |   No Cartridge, Caution (cleaning    |
          |           |         |              required)               |
          |-----------+---------+--------------------------------------|
          |    On     |  Pulse  | Cartridge loaded, Caution (cleaning  |
          |           |         |              required)               |
          |-----------+---------+--------------------------------------|
          |   Flash   |  Pulse  |   Cartridge loaded, Drive Active,    |
          |           |         |     Caution (cleaning required)      |
          |-----------+---------+--------------------------------------|
          |   Pulse   |  Pulse  | Cartridge loading/unloading, Caution |
          |           |         |         (cleaning required)          |
          +------------------------------------------------------------+
