# DIGITAL EQUIPMENT CORPORATION
SWXTA-BT
Device Type External Tape Drive
Interface SCSI-2
Format DDS-2
Sustained Transfer Rate 400 KBPS
800 KBPS (compressed)
Size External dimensions unidentified

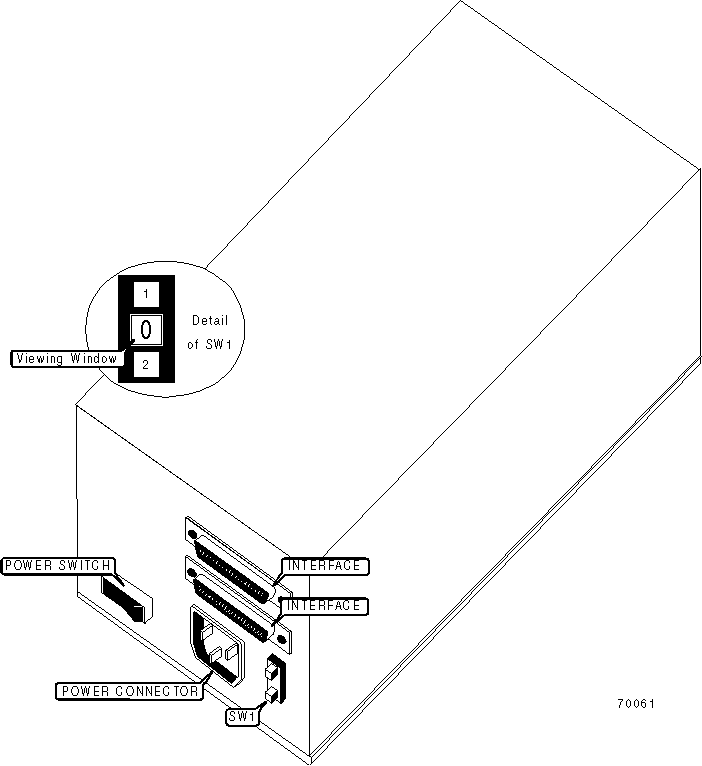

View Top
(IMG) IMG 1
+------------------------------------------------------------+
| DRIVE SELECT ID |
|------------------------------------------------------------|
| Note: SCSI ID is selected by activating SW1 until the |
| desired number is displayed in the viewing window. The |
| default ID is 5. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MANUFACTURERS RECOMMENDED MEDIA |
|------------------------------------------------------------|
| Tape | Capacity Without | Capacity With |
| | Compression | Compression |
|-----------------+--------------------------+---------------|
| TLZ04-CA 60 | Unidentified | Unidentified |
| meter cassette | | |
|-----------------+--------------------------+---------------|
| TLZ06-CA 90 | Unidentified | Unidentified |
| meter cassette | | |
|-----------------+--------------------------+---------------|
| TLZ07-CA 120 | 4.0GB | 8.0GB |
| meter cassette | | |
+------------------------------------------------------------+
