          A104-ENET

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         Proprietary module
          Topology         Linear bus
          Wiring Type      AUI transceiver via DB-15 port

                           AUI transceiver via 15-pin interface
          Boot ROM         Available

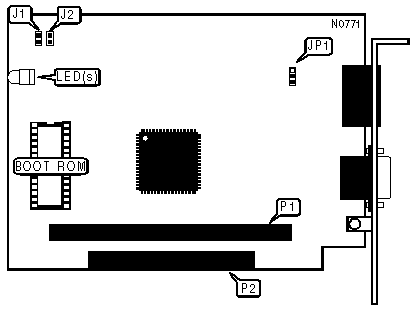

 (IMG) IMG 1


          +------------------------------------------------------------+
          |              SOFTWARE/HARDWARE CONFIGURATION               |
          |------------------------------------------------------------|
          |      Setting      |   Boot ROM    |          JP1           |
          |-------------------+---------------+------------------------|
          | » |   Hardware    |   Disabled    |   Pins 2 & 3 closed    |
          |---+---------------+---------------+------------------------|
          |   |   Software    |    Enabled    |   Pins 1 & 2 closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |    Color    |    Status    |           Condition           |
          |-------------+--------------+-------------------------------|
          |    Green    |     Off      |       Data is not being       |
          |             |              |     transmitted/received      |
          |-------------+--------------+-------------------------------|
          |    Green    |   Blinking   |         Data is being         |
          |             |              |     transmitted/received      |
          |-------------+--------------+-------------------------------|
          |   Yellow    |     Off      |   No collision is occurring   |
          |-------------+--------------+-------------------------------|
          |   Yellow    |   Blinking   |    Collision is occurring     |
          |------------------------------------------------------------|
          |   Note: The location of the green and yellow LED's         |
          |   relative to each other is unspecified in manufacturer    |
          |   documentation.                                           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |            Purpose            |          Location          |
          |-------------------------------+----------------------------|
          |  Diagnostic LED connector 1   |             J1             |
          |-------------------------------+----------------------------|
          |  Diagnostic LED connector 2   |             J2             |
          |-------------------------------+----------------------------|
          | Stackthrough bus connector 1  |             P1             |
          |-------------------------------+----------------------------|
          | Stackthrough bus connector 2  |             P2             |
          +------------------------------------------------------------+
