       # PARADISE SYSTEMS, INC.

          N100RJ

          Card Type              Network Interface Card
          NIC Type               Ethernet
          Maximum Onboard Memory 256 kB RAM
          Boot ROM               Not available
          Network Transfer Rate  10/100Mbps
          Topology               Star, Linear Bus
          Wiring Type            RJ-45 Unshielded twisted pair
          Data Bus               32-bit PCI

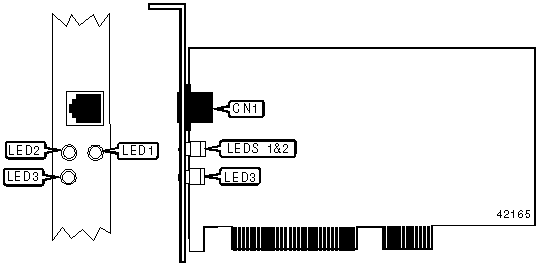

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | RJ-45 UTP connector           |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color |  Status  |            Condition             |
          |------+-------+----------+----------------------------------|
          | LED1 | Green |    On    |    Network connection is good    |
          |------+-------+----------+----------------------------------|
          | LED1 | Green |   Off    |   Network connection is broken   |
          |------+-------+----------+----------------------------------|
          | LED2 | Green |    On    |  Port is operating at 100 Mbps   |
          |------+-------+----------+----------------------------------|
          | LED2 | Green |   Off    |   Port is not operating at 100   |
          |      |       |          |               Mbps               |
          |------+-------+----------+----------------------------------|
          | LED3 | Green | Blinking |    Data is being transmitted     |
          |------+-------+----------+----------------------------------|
          | LED3 | Green |   Off    |  Data is not being transmitted   |
          +------------------------------------------------------------+
