       # PURE DATA, LTD.

          PDI8023PLUSII-16CA

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         16-bit ISA
          Topology         Linear Bus
          Wiring Type      AUI Transceiver via DB-15 port

                           RG-58A/U 50ohm coaxial
          Boot ROM         Available

 (IMG) IMG 1


 (IMG) IMG 2


          +------------------------------------------------------------+

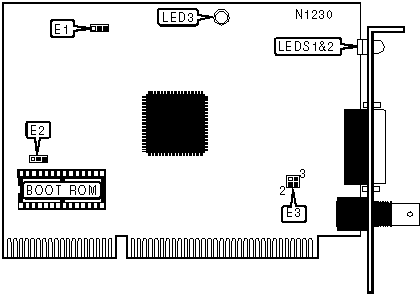

          |                   BOOT ROM CONFIGURATION                   |
          |------------------------------------------------------------|
          |          Setting           |              E1               |
          |----------------------------+-------------------------------|
          |          Enabled           |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |          Disabled          |       pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     ROM SIZE SELECTION                     |
          |------------------------------------------------------------|
          |            Size            |              E2               |
          |----------------------------+-------------------------------|
          |            64KB            |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           128KB            |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           256KB            |       pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               NETWORK DISTANCE CONFIGURATION               |
          |------------------------------------------------------------|
          |           Distance            |             E3             |
          |-------------------------------+----------------------------|
          |         =< 185 meters         |     pins 1 & 2 closed      |
          |-------------------------------+----------------------------|
          |      > 185, -<300 meters      |     pins 3 & 4 closed      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   | Color  | Status  |           Condition            |
          |--------+--------+---------+--------------------------------|
          |  LED1  | Green  |   On    |   Network activity detected    |
          |--------+--------+---------+--------------------------------|
          |  LED1  | Green  |   Off   | Network activity not detected  |
          |--------+--------+---------+--------------------------------|
          |  LED2  |  Red   |   On    |     Card activity detected     |
          |--------+--------+---------+--------------------------------|
          |  LED2  |  Red   |   Off   |   Card activity not detected   |
          |--------+--------+---------+--------------------------------|
          |  LED3  |  Red   |   On    |   Network collision detected   |
          |--------+--------+---------+--------------------------------|
          |  LED3  |  Red   |   Off   | Network collision not detected |
          +------------------------------------------------------------+
