       # PURE DATA, LTD.

          PDI8023PLUSII-16T

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         16-bit ISA
          Topology         Star
          Wiring Type      Unshielded twisted pair
          Boot ROM         Available

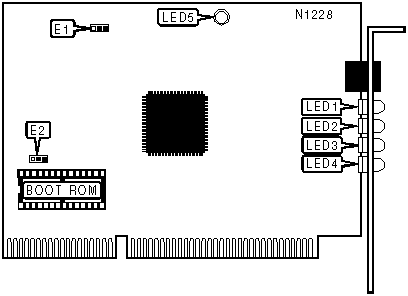

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                   BOOT ROM CONFIGURATION                   |
          |------------------------------------------------------------|
          |          Setting           |              E1               |
          |----------------------------+-------------------------------|
          |          Enabled           |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |          Disabled          |       pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     ROM SIZE SELECTION                     |
          |------------------------------------------------------------|
          |            Size            |              E2               |
          |----------------------------+-------------------------------|
          |            64KB            |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           128KB            |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           256KB            |       pins 3 & 4 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   | Color  | Status  |           Condition            |
          |--------+--------+---------+--------------------------------|
          |  LED1  |  Red   |   On    |     Card activity detected     |
          |--------+--------+---------+--------------------------------|
          |  LED1  |  Red   |   Off   |   Card activity not detected   |
          |--------+--------+---------+--------------------------------|
          |  LED2  | Green  |   On    |   Network activity detected    |
          |--------+--------+---------+--------------------------------|
          |  LED2  | Green  |   Off   | Network activity not detected  |
          |--------+--------+---------+--------------------------------|
          |  LED3  |  Red   |   On    |      Polarity is reversed      |
          |--------+--------+---------+--------------------------------|
          |  LED3  |  Red   |   Off   |       Polarity is normal       |
          |--------+--------+---------+--------------------------------|
          |  LED4  | Green  |   On    |   Network connection is good   |
          |--------+--------+---------+--------------------------------|
          |  LED4  | Green  |   Off   |  Network connection is broken  |
          |--------+--------+---------+--------------------------------|
          |  LED5  |  Red   |   On    |   Network collision detected   |
          |--------+--------+---------+--------------------------------|
          |  LED5  |  Red   |   Off   | Network collision not detected |
          +------------------------------------------------------------+
