       # PURE DATA, LTD.

          PDI8023PLUSII-16CAT

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         16-bit ISA
          Topology         Linear Bus/Star
          Wiring Type      Unshielded twisted pair

                           AUI Transceiver via DB-15 port

                           RG-58A/U 50ohm coaxial
          Boot ROM         Available

 (IMG) IMG 1


 (IMG) IMG 2


          +------------------------------------------------------------+

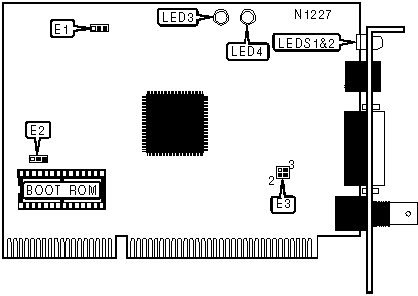

          |                   BOOT ROM CONFIGURATION                   |
          |------------------------------------------------------------|
          |          Setting           |              E1               |
          |----------------------------+-------------------------------|
          |          Enabled           |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |          Disabled          |       pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     ROM SIZE SELECTION                     |
          |------------------------------------------------------------|
          |            Size            |              E2               |
          |----------------------------+-------------------------------|
          |            64KB            |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           128KB            |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           256KB            |       pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |        NETWORK DISTANCE CONFIGURATION FOR 10BASE-2         |
          |------------------------------------------------------------|
          |           Distance            |             E3             |
          |-------------------------------+----------------------------|
          |         =< 185 meters         |     pins 1 & 2 closed      |
          |-------------------------------+----------------------------|
          |      >185, =<300 meters       |     pins 3 & 4 closed      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color | Status |             Condition              |
          |------+-------+--------+------------------------------------|
          | LED1 | Green |   On   |     Network activity detected      |
          |------+-------+--------+------------------------------------|
          | LED1 | Green |  Off   |   Network activity not detected    |
          |------+-------+--------+------------------------------------|
          | LED2 |  Red  |   On   |       Card activity detected       |
          |------+-------+--------+------------------------------------|
          | LED2 |  Red  |  Off   |     Card activity not detected     |
          |------+-------+--------+------------------------------------|
          | LED3 |  Red  |   On   |     Network collision detected     |
          |------+-------+--------+------------------------------------|
          | LED3 |  Red  |  Off   |   Network collision not detected   |
          |------+-------+--------+------------------------------------|
          | LED4 | Green |   On   |   10Base-T network connection is   |
          |      |       |        |                good                |
          |------+-------+--------+------------------------------------|
          | LED4 | Green |  Off   |   10Base-T network connection is   |
          |      |       |        |               broken               |
          +------------------------------------------------------------+
