       # RAGULA SYSTEMS

          100VG ISA ADAPTER CARD

          NIC Type         Ethernet
          Transfer Rate    10/100Mbps
          Data Bus         16-bit ISA
          Topology         Linear Bus/Star
          Wiring Type      Unshielded twisted pair
          Boot ROM         Unidentified

 (IMG) IMG 1


          +------------------------------------------------------------+

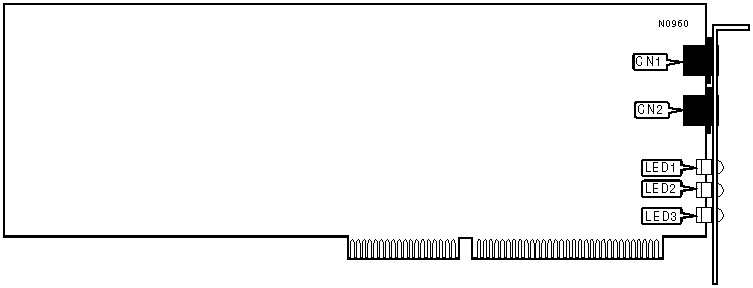

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |          Location          |           Function            |
          |----------------------------+-------------------------------|
          |            CN1             |   10Mbps Ethernet connector   |
          |----------------------------+-------------------------------|
          |            CN2             |  100Mbps Ethernet connector   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   | Color  |  Status  |           Condition           |
          |--------+--------+----------+-------------------------------|
          |  LED1  | Green  |    On    |  100Mbps connection is good   |
          |--------+--------+----------+-------------------------------|
          |  LED1  | Green  |   Off    | 100Mbps connection is broken  |
          |--------+--------+----------+-------------------------------|
          | LED1 & | Green  |    On    |   10Mbps connection is good   |
          |  LED2  |        |          |                               |
          |--------+--------+----------+-------------------------------|
          | LED1 & | Green  |   Off    |  10Mbps connection is broken  |
          |  LED2  |        |          |                               |
          |--------+--------+----------+-------------------------------|
          |  LED3  | Yellow | Blinking |         Data is being         |
          |        |        |          |     transmitted/received      |
          |--------+--------+----------+-------------------------------|
          |  LED3  | Yellow |   Off    |       Data is not being       |
          |        |        |          |     transmitted/received      |
          |------------------------------------------------------------|
          | Note: The brightness of LED3 indicates traffic volume.     |
          +------------------------------------------------------------+
