       # RACORE COMPUTER PRODUCTS, INC.

          M8110 (REV. 1.2)

          NIC Type:           Token-Ring
          Transfer Rate:      4Mbps
          Data Bus:           16-bit ISA
          Topology:           Ring
          Wiring Type         Shielded twisted pair
          Boot ROM            Available

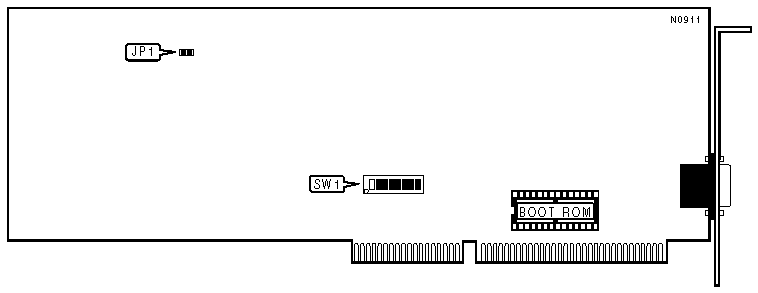

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                LOGICAL LINK CONTROL FEATURE                |
          |------------------------------------------------------------|
          |                 Setting                 |       JP1        |
          |-----------------------------------------+------------------|
          | »           |         Disabled          |      Closed      |
          |-------------+---------------------------+------------------|
          |             |          Enabled          |       Open       |
          |------------------------------------------------------------|
          | Note:The Logical Link Control feature must have the        |
          | appropriate firmware installed to function.                |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                        I/O ADDRESS                         |
          |------------------------------------------------------------|
          |      Address      |       SW1/1        |       SW1/2       |
          |-------------------+--------------------+-------------------|
          |       A00h        |         On         |        On         |
          |-------------------+--------------------+-------------------|
          |       A20h        |         On         |        Off        |
          |-------------------+--------------------+-------------------|
          |       A40h        |        Off         |        On         |
          |-------------------+--------------------+-------------------|
          |       A60h        |        Off         |        Off        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      INTERRUPT SELECT                      |
          |------------------------------------------------------------|
          |        IRQ        |       SW1/3        |       SW1/4       |
          |-------------------+--------------------+-------------------|
          |       IRQ3        |         On         |        On         |
          |-------------------+--------------------+-------------------|
          |       IRQ9        |         On         |        Off        |
          |-------------------+--------------------+-------------------|
          |       IRQ10       |        Off         |        On         |
          |-------------------+--------------------+-------------------|
          |       IRQ11       |        Off         |        Off        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      BOOT ROM ADDRESS                      |
          |------------------------------------------------------------|
          |      Address      |       SW1/5        |       SW1/6       |
          |-------------------+--------------------+-------------------|
          |      CC000h       |         On         |        On         |
          |-------------------+--------------------+-------------------|
          |      D0000h       |         On         |        Off        |
          |-------------------+--------------------+-------------------|
          |      D8000h       |        Off         |        On         |
          |-------------------+--------------------+-------------------|
          |      DC000h       |        Off         |        Off        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         DMA SELECT                         |
          |------------------------------------------------------------|
          |      Channel      |       SW1/7        |       SW1/8       |
          |-------------------+--------------------+-------------------|
          |       DMA0        |         On         |        On         |
          |-------------------+--------------------+-------------------|
          |       DMA5        |         On         |        Off        |
          |-------------------+--------------------+-------------------|
          |       DMA6        |        Off         |        On         |
          |-------------------+--------------------+-------------------|
          |       DMA7        |        Off         |        Off        |
          +------------------------------------------------------------+
