# RACORE COMPUTER PRODUCTS, INC.
M8119
NIC Type Token-Ring
Transfer Rate 4/16Mbps
Data Bus 8/16-bit ISA
Topology Ring
Wiring Type Shielded twisted pair
Unshielded twisted pair
Boot ROM Available (Built-in Remote Program Load)

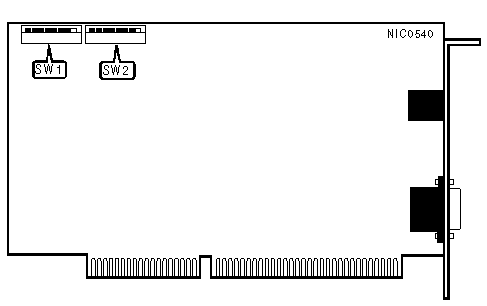

(IMG) IMG 1
+------------------------------------------------------------+
| I/O BASE ADDRESS |
|------------------------------------------------------------|
| Address | SW1/1 | SW1/2 |
|------------------------+-----------------+-----------------|
| » | A00 - A0Fh | On | On |
|---+--------------------+-----------------+-----------------|
| | A20 - A2Fh | Off | On |
|---+--------------------+-----------------+-----------------|
| | A40 - A4Fh | On | Off |
|---+--------------------+-----------------+-----------------|
| | A60 - A6Fh | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT REQUEST |
|------------------------------------------------------------|
| IRQ | SW1/3 | SW1/4 |
|--------------------------+----------------+----------------|
| | 2/9 | Off | On |
|-----------+--------------+----------------+----------------|
| » | 3 | On | On |
|-----------+--------------+----------------+----------------|
| | 10 | On | Off |
|-----------+--------------+----------------+----------------|
| | 11 | Off | Off |
|------------------------------------------------------------|
| Note:If using the card in an 8-bit slot IRQ10 becomes IRQ3 |
| and IRQ11 becomes IRQ2. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLASH ROM ADDRESS |
|------------------------------------------------------------|
| Address | SW1/5 | SW1/6 |
|------------------------+-----------------+-----------------|
| | CC000 - CDFFFh | On | On |
|---+--------------------+-----------------+-----------------|
| | D0000 - D1FFFh | Off | On |
|---+--------------------+-----------------+-----------------|
| » | D8000 - D9FFFh | On | Off |
|---+--------------------+-----------------+-----------------|
| | DC000 - DDFFFh | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL |
|------------------------------------------------------------|
| Channel | SW1/7 | SW1/8 |
|----------------------+------------------+------------------|
| » | DMA0 | On | On |
|---+------------------+------------------+------------------|
| | DMA5 | Off | On |
|---+------------------+------------------+------------------|
| | DMA6 | On | Off |
|---+------------------+------------------+------------------|
| | DMA7 | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| NETWORK SEGMENT SPEED |
|------------------------------------------------------------|
| Speed | SW2/2 |
|-----------------------------------------+------------------|
| » | 16Mbps | On |
|---------------+-------------------------+------------------|
| | 4Mbps | Off |
|------------------------------------------------------------|
| Note:All cards on the network segment must have this |
| option set the same. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | SW2/3 |
|-------------------------------+----------------------------|
| Shielded twisted pair | On |
|-------------------------------+----------------------------|
| Unshielded twisted pair | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLASH ROM ENABLE |
|------------------------------------------------------------|
| Setting | SW2/4 |
|---------------------------------------+--------------------|
| » | Enabled | Off |
|---------------+-----------------------+--------------------|
| | Disabled | On |
|------------------------------------------------------------|
| Note:The flash ROM stores the ROM boot programs, RPL |
| (Remote Program Load) programs, LLC, and node address. If |
| the flash ROM is disabled, the node address must be passed |
| to the installed driver and the file RTR16LLC.COD must be |
| present. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA BURST SPEED |
|------------------------------------------------------------|
| Setting | SW2/6 |
|---------------------------------+--------------------------|
| » | Minimum | On |
|---+-----------------------------+--------------------------|
| | Maximum | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CLOCK SOURCE |
|------------------------------------------------------------|
| Setting | SW2/7 |
|-------------------------------------------+----------------|
| » | Onboard 8MHz clock | On |
|------------+------------------------------+----------------|
| | I/O bus clock | Off |
|------------------------------------------------------------|
| Note:If your system has an I/O bus speed greater than 8MHz |
| you can improve system performance by selecting the I/O |
| bus clock as the clock signal (SW2/7 Off) but the |
| manufacturer warns that this setting will not work in all |
| systems. If using the I/O bus clock setting, you should |
| test the card thoroughly before attatching it to your |
| network. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|------------------------------+-----------------------------|
| SW2/1 | Off |
|------------------------------+-----------------------------|
| SW2/5 | On |
+------------------------------------------------------------+
