       # PURE DATA, LTD.

          PURELAN

          NIC Type         Ethernet
          Transfer Rate    2Mbps
          Data Bus         8/16-bit ISA
          Topology         Star
          Wiring Type      RF Antenna (902 - 928MHz)
          Boot ROM         Available

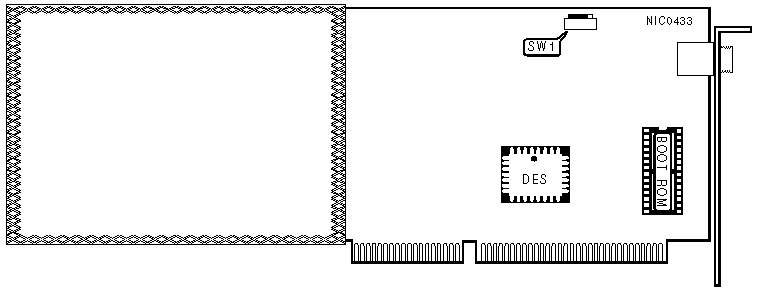

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                      I/O BASE ADDRESS                      |
          |------------------------------------------------------------|
          |       Address        |      SW1/1       |      SW1/2       |
          |----------------------+------------------+------------------|
          | » |       300h       |       Off        |       Off        |
          |---+------------------+------------------+------------------|
          |   |       390h       |       Off        |        On        |
          |---+------------------+------------------+------------------|
          |   |       3C0h       |        On        |       Off        |
          |---+------------------+------------------+------------------|
          |   |       3E0h       |        On        |        On        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      BOOT ROM ADDRESS                      |
          |------------------------------------------------------------|
          |        Address         |      SW2/3      |      SW2/4      |
          |------------------------+-----------------+-----------------|
          | » |      Disabled      |       Off       |       Off       |
          |---+--------------------+-----------------+-----------------|
          |   |       C8000h       |       Off       |       On        |
          |---+--------------------+-----------------+-----------------|
          |   |       D0000h       |       On        |       Off       |
          |---+--------------------+-----------------+-----------------|
          |   |       D8000h       |       On        |       On        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    MISCELLANEOUS NOTES                     |
          |------------------------------------------------------------|
          | The DES is an optional Data Encryption Security chip       |
          | available from the manufacturer. If one card uses the DES  |
          | chip, all cards must use the chip.                         |
          +------------------------------------------------------------+
