       # PURE DATA LTD.

          PD1516PLUS-H (HIGH IMPEDANCE)

          NIC Type         ARCnet
          Transfer Rate    2.5Mbps
          Data Bus         16-bit ISA
          Topology         Linear Bus
          Wiring Type      RG-62A/U 93ohm coaxial
          Boot ROM         Available

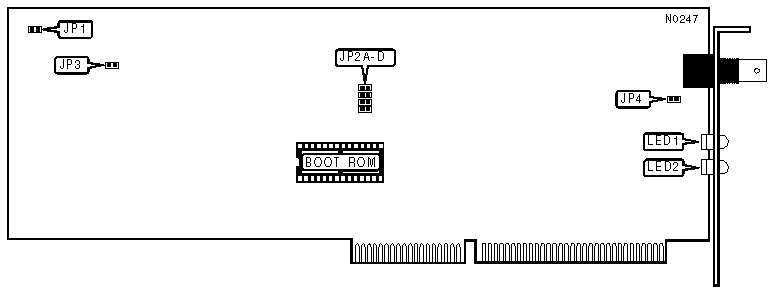

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                 CONFIGURATION MEMORY CLEAR                 |
          |------------------------------------------------------------|
          |                     Clear                     |    JP1     |
          |-----------------------------------------------+------------|
          | »     |           Normal operation            |    Open    |
          |-------+---------------------------------------+------------|
          |       | Clear all addresses and settings from |   Closed   |
          |       |                memory                 |            |
          |------------------------------------------------------------|
          | Note: When JP1 is closed all card addresses and settings   |
          | are cleared from memory.                                   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      CARDS INSTALLED                       |
          |------------------------------------------------------------|
          |    Card    |   JP2A    |   JP2B    |   JP2C    |   JP2D    |
          |   number   |           |           |           |           |
          |------------+-----------+-----------+-----------+-----------|
          |     1      |  Closed   |   Open    |   Open    |   Open    |
          |------------+-----------+-----------+-----------+-----------|
          |     2      |   Open    |  Closed   |   Open    |   Open    |
          |------------+-----------+-----------+-----------+-----------|
          |     3      |   Open    |   Open    |  Closed   |   Open    |
          |------------+-----------+-----------+-----------+-----------|
          |     4      |   Open    |   Open    |   Open    |  Closed   |
          |------------------------------------------------------------|
          |   Note:If there is only one NIC installed in a system, set |
          |   this option to the "1" position. If this NIC is the      |
          |   second NIC to be installed in a system, set this option  |
          |   to the "2" position and so on.                           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     COMPATIBILITY MODE                     |
          |------------------------------------------------------------|
          |                  Condition                  |     JP3      |
          |---------------------------------------------+--------------|
          | »       |    Compatibility mode disabled    |     Open     |
          |---------+-----------------------------------+--------------|
          |         |    Compatibility mode enabled     |    Closed    |
          |------------------------------------------------------------|
          |   Note: Compatibility mode should be enabled only when the |
          |   NIC is installed in a system using a Suntac 286 chipset. |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     TERMINATION JUMPER                     |
          |------------------------------------------------------------|
          |                  Condition                  |     JP4      |
          |---------------------------------------------+--------------|
          | »       |     Termination mode disabled     |     Open     |
          |---------+-----------------------------------+--------------|
          |         |     Termination mode enabled      |    Closed    |
          |------------------------------------------------------------|
          | Note: Termination mode should be enabled when the NIC is   |
          | installed on the end of a coaxial bus, therefore no        |
          | external terminator is needed.                             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color |  Status  |            Condition             |
          |------+-------+----------+----------------------------------|
          | LED1 |  Red  | Blinking |         I/O bus activity         |
          |------+-------+----------+----------------------------------|
          | LED1 |  Red  |   Off    |       No I/O bus activity        |
          |------+-------+----------+----------------------------------|
          | LED2 | Green |    On    |   Data is being transmitted or   |
          |      |       |          |             received             |
          |------+-------+----------+----------------------------------|
          | LED2 | Green | Blinking | No network activity detected, or |
          |      |       |          |          bad connection          |
          +------------------------------------------------------------+
