       # IBM CORPORATION

          TOKEN-RING 16/4 ADAPTER

          NIC Type         Token-Ring
          Transfer Rate    4/16Mbps
          Data Bus         8-bit ISA
          Topology         Ring
          Wiring Type      IBM Type-6
          Boot ROM         Available

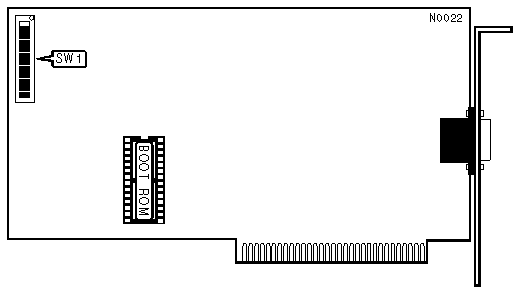

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                 BOOT ROM ADDRESS SELECTION                 |
          |------------------------------------------------------------|
          |  Address   | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
          |------------+-------+-------+-------+-------+-------+-------|
          |   | A000h  |  On   |  Off  |  On   |  On   |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | A400h  |  On   |  Off  |  On   |  On   |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | A800h  |  On   |  Off  |  On   |  Off  |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | AC00h  |  On   |  Off  |  On   |  Off  |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | B000h  |  On   |  Off  |  Off  |  On   |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | B400h  |  On   |  Off  |  Off  |  On   |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | B800h  |  On   |  Off  |  Off  |  Off  |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | BC00h  |  On   |  Off  |  Off  |  Off  |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          | » | C000h  |  Off  |  On   |  On   |  On   |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | C400h  |  Off  |  On   |  On   |  On   |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | C800h  |  Off  |  On   |  On   |  Off  |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | CC00h  |  Off  |  On   |  On   |  Off  |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | CE00h  |  Off  |  On   |  On   |  Off  |  Off  |  Off  |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | D000h  |  Off  |  On   |  Off  |  On   |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | D200h  |  Off  |  On   |  Off  |  On   |  On   |  Off  |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | D400h  |  Off  |  On   |  Off  |  On   |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | D800h  |  Off  |  On   |  Off  |  Off  |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | DC00h  |  Off  |  On   |  Off  |  Off  |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | E000h  |  Off  |  Off  |  On   |  On   |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | E400h  |  Off  |  Off  |  On   |  On   |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | E800h  |  Off  |  Off  |  On   |  Off  |  On   |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | EC00h  |  Off  |  Off  |  On   |  Off  |  Off  |  On   |
          |---+--------+-------+-------+-------+-------+-------+-------|
          |   | F000h  |  Off  |  Off  |  Off  |  On   |  On   |  On   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                INTERRUPT REQUEST SELECTION                 |
          |------------------------------------------------------------|
          |        IRQ        |       SW1/7        |       SW1/8       |
          |-------------------+--------------------+-------------------|
          |         2         |         On         |        On         |
          |-------------------+--------------------+-------------------|
          |         3         |         On         |        Off        |
          |-------------------+--------------------+-------------------|
          |         7         |        Off         |        Off        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 I/O BASE ADDRESS SELECTION                 |
          |------------------------------------------------------------|
          |             Address             |          SW1/9           |
          |---------------------------------+--------------------------|
          | »     |          A20h           |           Off            |
          |-------+-------------------------+--------------------------|
          |       |          A24H           |            On            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 SHARED RAM SIZE SELECTION                  |
          |------------------------------------------------------------|
          |     Shared RAM size      |     SW1/10     |     SW1/11     |
          |--------------------------+----------------+----------------|
          |       |       8KB        |       On       |       On       |
          |-------+------------------+----------------+----------------|
          | »     |       16KB       |      Off       |       On       |
          |-------+------------------+----------------+----------------|
          |       |       32KB       |       On       |      Off       |
          |-------+------------------+----------------+----------------|
          |       |       64KB       |      Off       |      Off       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  NETWORK SPEED SELECTION                   |
          |------------------------------------------------------------|
          |            Speed             |           SW1/12            |
          |------------------------------+-----------------------------|
          |            4Mbps             |             On              |
          |------------------------------+-----------------------------|
          |            16Mbps            |             Off             |
          +------------------------------------------------------------+
