       # FOCUS ENHANCEMENTS, INC.

          LIGHTNING 1100 PCI

          NIC Type              Ethernet
          Data Bus              32-bit PCI
          Network Transfer Rate 10/100Mbps
          Topology              Star
          Wiring Type           Unshielded twisted pair
          Boot ROM              Not available

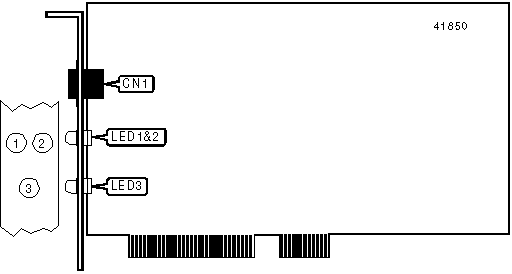

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |             Function              |         Label          |
          |-----------------------------------+------------------------|
          | Unshielded twisted pair connector |          CN1           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED  |  Color  |  Status  |           Condition           |
          |-------+---------+----------+-------------------------------|
          | LED1  | Yellow  | Blinking |    Card is receiving data     |
          |-------+---------+----------+-------------------------------|
          | LED1  | Yellow  |   Off    |  Card is not receiving data   |
          |-------+---------+----------+-------------------------------|
          | LED2  |  Green  | Blinking |   Card is transmitting data   |
          |-------+---------+----------+-------------------------------|
          | LED2  |  Green  |   Off    | Card is not transmitting data |
          |-------+---------+----------+-------------------------------|
          | LED3  |  Green  |    On    |  Network connection is good   |
          |-------+---------+----------+-------------------------------|
          | LED3  |  Green  |   Off    | Network connection is broken  |
          +------------------------------------------------------------+
