       # DIGITAL EQUIPMENT CORPORATION

          FIBER-OPTIC DAS ADAPTER (DEFEA-DA)

          Card Type              Network Interface Card
          NIC Type               FDDI
          Maximum Onboard Memory Unidentified
          Boot ROM               Available
          Network Transfer Rate  100Mbps
          Topology               Linear bus, Ring
          Wiring Type            Fiber optic cable
          Data Bus               32-bit EISA

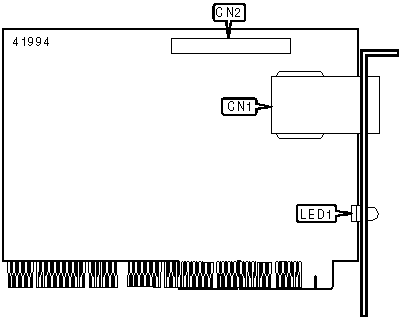

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function      | Label |       Function        | Label |
          |--------------------+-------+-----------------------+-------|
          | Fiber optic        |  CN1  | Ribbon cable          |  CN2  |
          | connector via MIC  |       | connector             |       |
          |                    |       | (unidentified)        |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | Note: Function of LED is unidentified.                     |
          +------------------------------------------------------------+

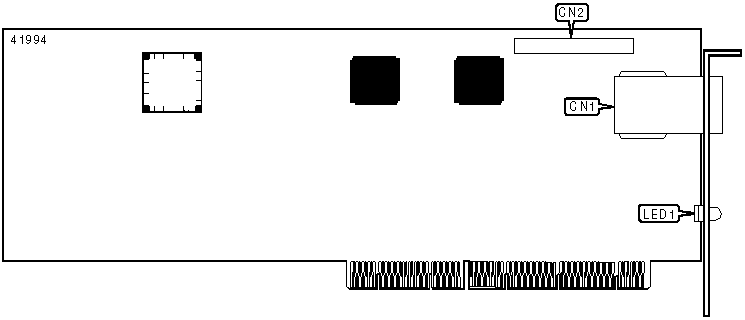

 (IMG) IMG 2


          +------------------------------------------------------------+
          |                 DAUGHTER BOARD CONNECTIONS                 |
          |------------------------------------------------------------|
          |      Function      | Label |       Function        | Label |
          |--------------------+-------+-----------------------+-------|
          | Fiber optic        |  CN1  | Ribbon cable          |  CN2  |
          | connector via MIC  |       | connector             |       |
          |                    |       | (unidentified)        |       |
          +------------------------------------------------------------+
