       # COMPEX, INC.

          RL2000 PCI

          Card Type              Network Interface Card
          NIC Type               Ethernet
          Maximum Onboard Memory 32KB
          Boot ROM               Available
          Network Transfer Rate  10Mbps
          Topology               Linear Bus, Star
          Wiring Type            Unshielded twisted pair

                                 RG-58A/U 50ohm coaxial
          Data Bus               32-bit PCI

 (IMG) IMG 1


          +------------------------------------------------------------+

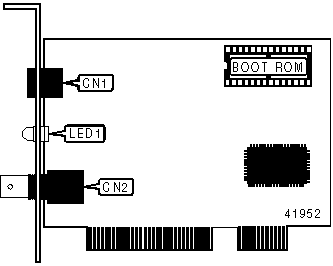

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Function     |  Label  |      Function       |  Label  |
          |------------------+---------+---------------------+---------|
          | UTP connector    |   CN1   | RG-58A/U connector  |   CN2   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | Note: Function of LED is unidentified.                     |
          +------------------------------------------------------------+
