# COMPEX, INC.
4-PORT EXTENDER BOARD
NIC Type ArcNet
Chip Set NCR 90C26
Data Bus 8-bit ISA
Network Transfer Rate 2.5Mbps x 4
Topology Star
Wiring Type RG-62A/U 93ohm coaxial
Boot ROM Not available
(IMG) IMG 1
+------------------------------------------------------------+

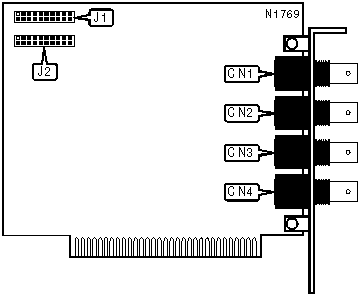

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| RG-62A/U 93ohm | CN1 | RG-62A/U 93ohm | CN4 |
| coaxial connector | | coaxial connector | |
|-----------------------+-------+--------------------+-------|
| RG-62A/U 93ohm | CN2 | Daisy-chain in | J1 |
| coaxial connector | | connector | |
|-----------------------+-------+--------------------+-------|
| RG-62A/U 93ohm | CN3 | Daisy-chain out | J2 |
| coaxial connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| The daisy-chain connector is used to connect up to three |
| extender cards to the ANET-4 for a total of 12 ports. For |
| additional information see document N1768. |
+------------------------------------------------------------+
