          NCU 9113/NCU 9114 (LCX1 PC9/11,PC13)

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         8-bit ISA
          Topology         Star
          Wiring Type      Unshielded twisted pair
          Boot ROM         Available

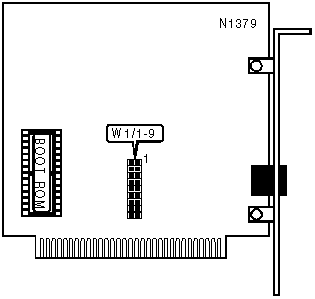

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                   BOOT ROM CONFIGURATION                   |
          |------------------------------------------------------------|
          |            Setting            |            W1/1            |
          |-------------------------------+----------------------------|
          |            Enabled            |           Closed           |
          |-------------------------------+----------------------------|
          |           Disabled            |            Open            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Purpose                | Location | Setting |
          |---------------------------------------+----------+---------|
          | » | Factory configured - do not alter |   W1/2   |  Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   BIOS ADDRESS SELECTION                   |
          |------------------------------------------------------------|
          |   Address   |  W1/3   |  W1/4   |  W1/5  |  W1/6  |  W1/7  |
          |-------------+---------+---------+--------+--------+--------|
          |   | C8000h  | Closed  | Closed  |  Open  | Closed | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | CA000h  |  Open   | Closed  |  Open  | Closed | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | CC000h  | Closed  |  Open   |  Open  | Closed | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | CE000h  |  Open   |  Open   |  Open  | Closed | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          | » | D0000h  | Closed  | Closed  | Closed |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | D2000h  |  Open   | Closed  | Closed |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | D4000h  | Closed  |  Open   | Closed |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | D6000h  |  Open   |  Open   | Closed |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | D8000h  | Closed  | Closed  |  Open  |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | DA000h  |  Open   | Closed  |  Open  |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | DC000h  | Closed  |  Open   |  Open  |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | DE000h  |  Open   |  Open   |  Open  |  Open  | Closed |
          |---+---------+---------+---------+--------+--------+--------|
          |   | E0000h  | Closed  | Closed  | Closed | Closed |  Open  |
          |---+---------+---------+---------+--------+--------+--------|
          |   | E2000h  |  Open   | Closed  | Closed | Closed |  Open  |
          |---+---------+---------+---------+--------+--------+--------|
          |   | E4000h  | Closed  |  Open   | Closed | Closed |  Open  |
          |---+---------+---------+---------+--------+--------+--------|
          |   | E6000h  |  Open   |  Open   | Closed | Closed |  Open  |
          |---+---------+---------+---------+--------+--------+--------|
          |   | E8000h  | Closed  | Closed  |  Open  | Closed |  Open  |
          |---+---------+---------+---------+--------+--------+--------|
          |   | EA000h  |  Open   | Closed  |  Open  | Closed |  Open  |
          |---+---------+---------+---------+--------+--------+--------|
          |   | EC000h  | Closed  |  Open   |  Open  | Closed |  Open  |
          |---+---------+---------+---------+--------+--------+--------|
          |   | EE000h  |  Open   |  Open   |  Open  | Closed |  Open  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |       IRQ        |        W1/8        |        W1/9        |
          |------------------+--------------------+--------------------|
          |        2         |       Closed       |        Open        |
          |------------------+--------------------+--------------------|
          |        3         |        Open        |       Closed       |
          +------------------------------------------------------------+
