# COMPU-SHACK PRODUCTION, GMBH
CS-ETHERNET BUSMASTER EISA
NIC Type: Ethernet
Transfer Rate: 10Mbps
Data Bus: 32-bit EISA
Topology: Linear Bus
Wiring Type AUI transceiver via DB-15 port
RG58A/U 50ohm coaxial or RG62/U 93ohm coaxial
Boot ROM Available

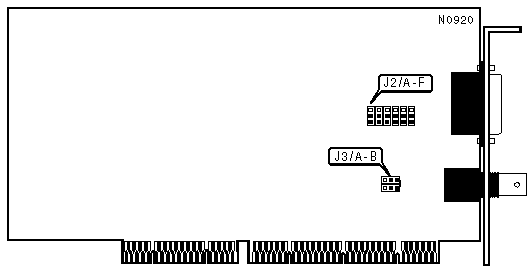

(IMG) IMG 1
+------------------------------------------------------------+
| WIRING TYPE SELECT - J2 |
|------------------------------------------------------------|
|Setting|Jumper A|jumper B|Jumper C|Jumper D|Jumper E|Jumper |
| | | | | | | F |
|-------+--------+--------+--------+--------+--------+-------|
| BNC | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
| | closed | closed | closed | closed | closed |closed |
|-------+--------+--------+--------+--------+--------+-------|
| AUI | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
| | closed | closed | closed | closed | closed |closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BNC TYPE |
|------------------------------------------------------------|
| Setting | J3/jumper A | J3/jumper B |
|---------------------+-------------------+------------------|
| ยป | RG58A/U 50ohm | Pins 2 & 3 closed | Pins 2 &3 closed |
| | coaxial | | |
|---+-----------------+-------------------+------------------|
| | RG62A/U 93ohm | Pins 1 & 2 closed | Pins 1 & 2 |
| | coaxial | | closed |
+------------------------------------------------------------+
