       # 3COM CORPORATION

          FDDILINK (3C796)

          NIC Type               FDDI
          Processor              68000
          Processor Speed        Unidentified
          I/O Options            Optical bypass relay
          Maximum Onboard Memory 1MB RAM
          Boot ROM               Not available
          Network Transfer Rate  100Mbps
          Topology               Ring
          Wire Type              Fiber optic cable
          Data Bus               32-bit PCI
          Card Size              Full height, half length

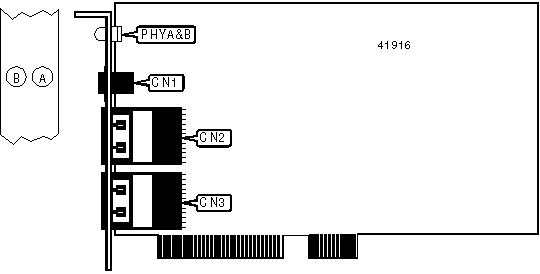

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | Optical bypass relay |  CN1  | Secondary fiber     |  CN3  |
          |                      |       | optic SC cable      |       |
          |                      |       | connector           |       |
          |----------------------+-------+---------------------+-------|
          | Primary fiber optic  |  CN2  |                     |       |
          | SC cable connector   |       |                     |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  |    Color     |   Status    |       Condition        |
          |------+--------------+-------------+------------------------|
          | PHYA |    Green     |     On      | Network connection on  |
          |      |              |             |  primary connector is  |
          |      |              |             |          good          |
          |------+--------------+-------------+------------------------|
          | PHYA |    Green     |  Blinking   | Card is attempting to  |
          |      |              |             | connect to network via |
          |      |              |             |   primary connector    |
          |------+--------------+-------------+------------------------|
          | PHYA | Green/Yellow | Alternating |   Card is on standby   |
          |      |              |             |   mode, or card not    |
          |      |              |             |  functioning properly  |
          |------+--------------+-------------+------------------------|
          | PHYA |    Yellow    |     On      | Network connection on  |
          |      |              |             |  primary connector is  |
          |      |              |             |  broken or self-test   |
          |      |              |             |         failed         |
          |------+--------------+-------------+------------------------|
          | PHYA |    Yellow    |  Blinking   |  Network topology on   |
          |      |              |             |  primary connector is  |
          |      |              |             |        invalid         |
          |------+--------------+-------------+------------------------|
          | PHYA |     N/A      |     Off     | Card is not receiving  |
          |      |              |             |         power          |
          |------+--------------+-------------+------------------------|
          | PHYB |    Green     |     On      | Network connection on  |
          |      |              |             | secondary connector is |
          |      |              |             |          good          |
          |------+--------------+-------------+------------------------|
          | PHYB |    Green     |  Blinking   | Card is attempting to  |
          |      |              |             | connect to network via |
          |      |              |             |  secondary connector   |
          |------+--------------+-------------+------------------------|
          | PHYB |    Yellow    |     On      | Network connection on  |
          |      |              |             | secondary connector is |
          |      |              |             |  broken or self-test   |
          |      |              |             |         failed         |
          |------+--------------+-------------+------------------------|
          | PHYB |    Yellow    |  Blinking   |  Network topology on   |
          |      |              |             | secondary connector is |
          |      |              |             |        invalid         |
          |------+--------------+-------------+------------------------|
          | PHYB |     N/A      |     Off     | Card is not receiving  |
          |      |              |             |         power          |
          +------------------------------------------------------------+
