       # 3COM CORPORATION

          ETHERLINK III (3C592-TPO)

          NIC Type              Ethernet
          Network Transfer Rate 10Mbps
          Data Bus              32-bit EISA
          Topology              Star
          Wiring Type           Unshielded twisted pair
          Boot ROM              Available (location unidentified)

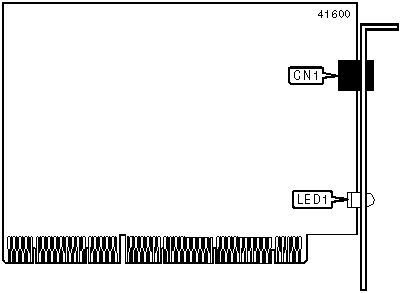

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | Unshielded twisted pair       |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |    LED    |   Status    |            Condition             |
          |-----------+-------------+----------------------------------|
          |   LED1    |     On      |    Network connection is good    |
          |-----------+-------------+----------------------------------|
          |   LED1    |  Blinking   |       Polarity is reversed       |
          |-----------+-------------+----------------------------------|
          |   LED1    |     Off     |   Network connection is broken   |
          |------------------------------------------------------------|
          |      Note: When you first install the adapter and power up |
          |      the computer, the LED lights, but the network         |
          |      connection is not active. For the network connection  |
          |      to be good you need to run the Group 3 test or have   |
          |      loaded the network drivers.                           |
          +------------------------------------------------------------+
