# VEXTREC TECHNOLOGY INC.
GMB-P6IPS (VER. 1.11)
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Intel 440FX
Video Chip Set None
Maximum Onboard 384MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions 330mm x 220mm
I/O Options 32-bit PCI slots (5), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, serial ports (2), IR
connector, USB connectors (2)
NPU Options None

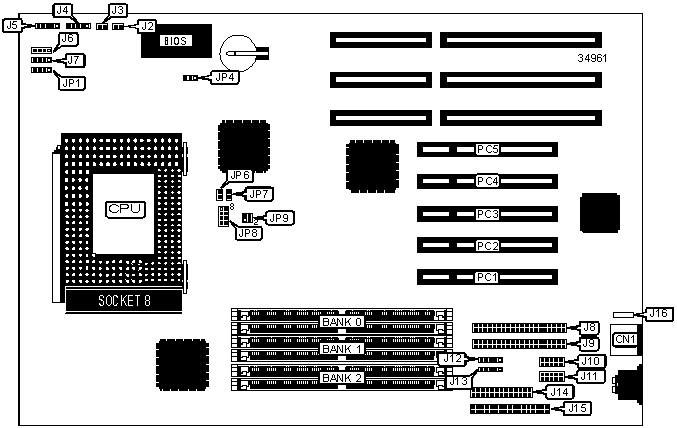

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| PS/2 mouse port | CN1 | Serial port 2 | J10 |
|-----------------+----------+--------------------+----------|
| Turbo LED | J2 | Serial port 1 | J11 |
|-----------------+----------+--------------------+----------|
| Reset switch | J3 | USB connector 1 | J12 |
|-----------------+----------+--------------------+----------|
| Power LED & | J4 | USB connector 2 | J13 |
| keylock | | | |
|-----------------+----------+--------------------+----------|
| IR connector | J5 | Parallel port | J14 |
|-----------------+----------+--------------------+----------|
| IDE interface | J6 | Floppy drive | J15 |
| LED | | interface | |
|-----------------+----------+--------------------+----------|
| Speaker | J7 | Unidentified | J16 |
|-----------------+----------+--------------------+----------|
| IDE interface 2 | J8 | Green PC connector | JP1 |
|-----------------+----------+--------------------+----------|
| IDE interface 1 | J9 | 32-bit PCI slots | PC1 - |
| | | | PC5 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Factory configured - do not alter | JP3 | Open |
|---+-----------------------------------+-------+------------|
| | Flash BIOS voltage select 12v | JP4 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS voltage select 5v | JP4 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 2MB | (2) 256K x 36 | None | None |
|------------+---------------+---------------+---------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 4MB | (2) 512K x 36 | None | None |
|------------+---------------+---------------+---------------|
| 6MB | (2) 256K x 36 | (2) 512K x 36 | None |
|------------+---------------+---------------+---------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 | None |
|------------+---------------+---------------+---------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 14MB | (2) 256K x 36 | (2) 512K x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 18MB | (2) 1M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (2) 1M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 | None |
|------------+---------------+---------------+---------------|
| 22MB | (2) 2M x 36 | (2) 512K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 26MB | (2) 2M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 28MB | (2) 2M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 38MB | (2) 4M x 36 | (2) 256K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 42MB | (2) 4M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 44MB | (2) 4M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 50MB | (2) 4M x 36 | (2) 2M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 52MB | (2) 4M x 36 | (2) 2M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 4M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 66MB | (2) 4M x 36 | (2) 4M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 | None |
|------------+---------------+---------------+---------------|
| 68MB | (2) 4M x 36 | (2) 4M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 70MB | (2) 8M x 36 | (2) 256K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (2) 8M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 74MB | (2) 8M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 76MB | (2) 8M x 36 | (2) 512K x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 82MB | (2) 8M x 36 | (2) 2M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 84MB | (2) 8M x 36 | (2) 2M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 8M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 98MB | (2) 8M x 36 | (2) 4M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 100MB | (2) 8M x 36 | (2) 4M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 8M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 16M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|------------+---------------+---------------+---------------|
| 130MB | (2) 8M x 36 | (2) 8M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 130MB | (2) 16M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 132MB | (2) 8M x 36 | (2) 8M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 138MB | (2) 16M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 140MB | (2) 16M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 1M x 36 | (2) 1M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|----------+----------------+----------------+---------------|
| 146MB | (2) 16M x 36 | (2) 2M x 36 | (2) 256K x 36 |
|----------+----------------+----------------+---------------|
| 148MB | (2) 16M x 36 | (2) 2M x 36 | (2) 512K x 36 |
|----------+----------------+----------------+---------------|
| 152MB | (2) 16M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|----------+----------------+----------------+---------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 | None |
|----------+----------------+----------------+---------------|
| 160MB | (2) 16M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|----------+----------------+----------------+---------------|
| 162MB | (2) 16M x 36 | (2) 4M x 36 | (2) 256K x 36 |
|----------+----------------+----------------+---------------|
| 164MB | (2) 16M x 36 | (2) 4M x 36 | (2) 512K x 36 |
|----------+----------------+----------------+---------------|
| 168MB | (2) 16M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|----------+----------------+----------------+---------------|
| 176MB | (2) 16M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|----------+----------------+----------------+---------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 | None |
|----------+----------------+----------------+---------------|
| 192MB | (2) 16M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|----------+----------------+----------------+---------------|
| 194MB | (2) 16M x 36 | (2) 8M x 36 | (2) 256K x 36 |
|----------+----------------+----------------+---------------|
| 196MB | (2) 16M x 36 | (2) 8M x 36 | (2) 512K x 36 |
|----------+----------------+----------------+---------------|
| 200MB | (2) 16M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|----------+----------------+----------------+---------------|
| 208MB | (2) 16M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|----------+----------------+----------------+---------------|
| 224MB | (2) 16M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|----------+----------------+----------------+---------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 | None |
|----------+----------------+----------------+---------------|
| 256MB | (2) 16M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|----------+----------------+----------------+---------------|
| 258MB | (2) 16M x 36 | (2) 16M x 36 | (2) 256K x 36 |
|----------+----------------+----------------+---------------|
| 260MB | (2) 16M x 36 | (2) 16M x 36 | (2) 512K x 36 |
|----------+----------------+----------------+---------------|
| 264MB | (2) 16M x 36 | (2) 16M x 36 | (2) 1M x 36 |
|----------+----------------+----------------+---------------|
| 272MB | (2) 16M x 36 | (2) 16M x 36 | (2) 2M x 36 |
|----------+----------------+----------------+---------------|
| 288MB | (2) 16M x 36 | (2) 16M x 36 | (2) 4M x 36 |
|----------+----------------+----------------+---------------|
| 320MB | (2) 16M x 36 | (2) 16M x 36 | (2) 8M x 36 |
|----------+----------------+----------------+---------------|
| 384MB | (2) 16M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 32 |
| SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JP6 | JP7 | JP8 | JP9 |
|--------+--------+--------+------------------+--------------|
| 150MHz | Open | Closed | 1 & 8, 3 & 6, 4 | 1 & 3, 2 & 4 |
| | | | & 5 | |
|--------+--------+--------+------------------+--------------|
| 166MHz | Closed | Open | 2 & 7, 3 & 6, 4 | 1 & 3 |
| | | | & 5 | |
|--------+--------+--------+------------------+--------------|
| 180MHz | Open | Closed | 1 & 8, 3 & 6, 4 | 2 & 4 |
| | | | & 5 | |
|--------+--------+--------+------------------+--------------|
| 200MHz | Closed | Open | 1 & 8, 3 & 6, 4 | 1 & 3 |
| | | | & 5 | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
