       # UNIDENTIFIED

          A386SX, A486SLC

          Processor              80386SX/CX486SLC
          Processor Speed        16/20/25/33MHz
          Chip Set               Unidentified
          Video Chip Set         None
          Maximum Onboard Memory 16MB
          Maximum Video Memory   None
          Cache                  None
          BIOS                   Phoenix
          Dimensions             228mm x 220mm
          I/O Options            None
          NPU Options            80387SX

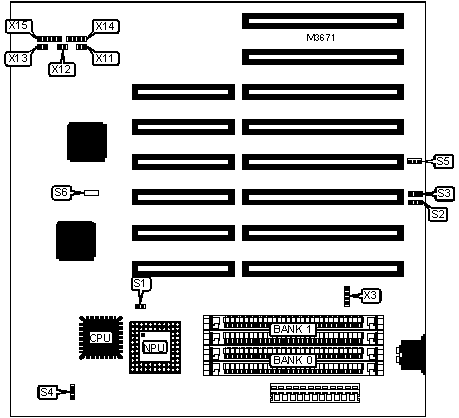

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | External battery |    X3    | Turbo switch      |   X13    |
          |------------------+----------+-------------------+----------|
          | Reset switch     |   X11    | Speaker           |   X14    |
          |------------------+----------+-------------------+----------|
          | Turbo LED        |   X12    | Power LED &       |   X15    |
          |                  |          | keylock           |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | » | Monitor type select color       |  S1   |     Open     |
          |---+---------------------------------+-------+--------------|
          |   | Monitor type select monochrome  |  S1   |    Closed    |
          |---+---------------------------------+-------+--------------|
          | » | Battery type select internal    |  S2   |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Battery type select external    |  S2   |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Battery voltage select < 5v     |  S3   |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Battery voltage select > 5v     |  S3   |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  S4   |  Pins 2 & 3  |
          |   | alter                           |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Power good signal detect from   |  S5   |  Pins 2 & 3  |
          |   | power supply                    |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Power good signal detect from   |  S5   |  Pins 1 & 2  |
          |   | board                           |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  S6   | Unidentified |
          |   | alter                           |       |              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (2) 256K x 9    |    (2) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       2MB        |     (2) 1M x 9     |        None        |
          |------------------+--------------------+--------------------|
          |       4MB        |     (2) 1M x 9     |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (2) 4M x 9     |        None        |
          |------------------+--------------------+--------------------|
          |       10MB       |     (2) 4M x 9     |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (2) 4M x 9     |     (2) 4M x 9     |
          +------------------------------------------------------------+
