# TYAN COMPUTER CORPORATION
S1832DL
Device Type Mainboard
Processor Pentium II/Celeron
Processor Speed 233/266/300/333/350/400MHz
Chip Set Intel 440BX
Maximum Onboard 1GB (SDRAM supported)
Memory
Cache 0/128/256/512KB (located on the CPU)
BIOS AMI
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (5), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connectors (2), ATX
power connector, AGP slot

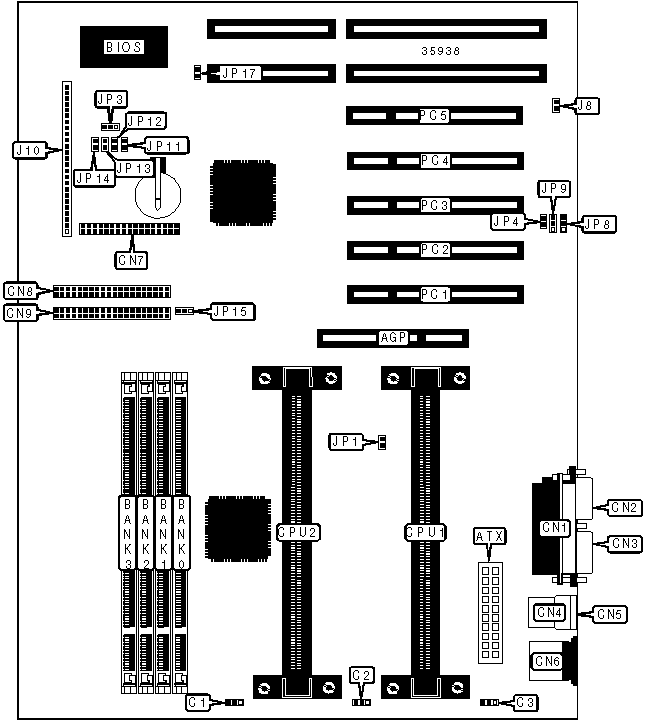

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| AGP slot | AGP | IDE interface 1 | CN9 |
|------------------+----------+------------------+-----------|
| ATX power | ATX | Chassis | J8 |
| connector | | intrustion | |
| | | connector | |
|------------------+----------+------------------+-----------|
| Chassis fan | C1 | Soft off power | J10/pins |
| power | | supply | 1 & 2 |
|------------------+----------+------------------+-----------|
| Chassis fan | C2 | Green PC | J10/pins |
| power | | connector | 3 & 4 |
|------------------+----------+------------------+-----------|
| Chassis fan | C3 | IR connector | J10/pins |
| power | | | 6 - 10 |
|------------------+----------+------------------+-----------|
| Parallel port | CN1 | IDE interface | J10/pins |
| | | LED | 13 - 16 |
|------------------+----------+------------------+-----------|
| Serial port 2 | CN2 | Power LED | J10/pins |
| | | | 18 & 20 |
|------------------+----------+------------------+-----------|
| Serial port 1 | CN3 | Reset switch | J10/pins |
| | | | 22 & 23 |
|------------------+----------+------------------+-----------|
| USB connector 1 | CN4 | Speaker | J10/pins |
| | | | 24 - 27 |
|------------------+----------+------------------+-----------|
| USB connector 2 | CN5 | Wake on LAN | JP15 |
| | | connector | |
|------------------+----------+------------------+-----------|
| PS/2 mouse port | CN6 | Green PC | JP17 |
| | | connector | |
|------------------+----------+------------------+-----------|
| Floppy drive | CN7 | 32-bit PCI slots | PC1 - PC5 |
| interface | | | |
|------------------+----------+------------------+-----------|
| IDE interface 2 | CN8 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP3 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP3 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | None |
| | | | 64 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | (1) 1M x |
| | | | 64 | 64 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x | None |
| | | | 64 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x | (1) 2M x |
| | | | 64 | 64 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 8M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x | None |
| | | | 64 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 128MB | (1) 16M x | None | None | None |
| | 64 | | | |
|--------+------------+------------+------------+------------|
| 128MB | (1) 8M x | (1) 8M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 128MB | (1) 4M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 136MB | (1) 16M x | (1) 1M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 144MB | (1) 16M x | (1) 2M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 176MB | (1) 16M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 192MB | (1) 16M x | (1) 8M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 192MB | (1) 8M x | (1) 8M x | (1) 8M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 256MB | (1) 32M x | None | None | None |
| | 64 | | | |
|--------+------------+------------+------------+------------|
| 256MB | (1) 16M x | (1) 16M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 256MB | (1) 8M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 272MB | (1) 16M x | (1) 16M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 280MB | (1) 32M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 288MB | (1) 16M x | (1) 16M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 320MB | (1) 16M x | (1) 16M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 384MB | (1) 16M x | (1) 16M x | (1) 16M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 448MB | (1) 32M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 512MB | (1) 32M x | (1) 32M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 512MB | (1) 16M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 640MB | (1) 32M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 768MB | (1) 32M x | (1) 32M x | (1) 32M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 1024MB | (1) 32M x | (1) 32M x | (1) 32M x | (1) 32M x |
| | 64 | 64 | 64 | 64 |
|------------------------------------------------------------|
| Note: Board accepts SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II |
| CPU. 128KB cache is located on the Celeron 300A & 333 |
| CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| JP11 | JP12 | JP13 | JP14 |
|---------+-----------+----------+------+------+------+------|
| 233MHz | 66MHz | 3.5x |Closed| Open | Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 266MHz | 66MHz | 4x | Open |Closed|Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 300MHz | 66MHz | 4.5x | Open |Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 333MHz | 66MHz | 5x | Open | Open |Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 350MHz | 100MHz | 3.5x |Closed| Open | Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 400MHz | 100MHz | 4x | Open |Closed|Closed|Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOPPY DRIVE/IR SELECTION |
|------------------------------------------------------------|
| Setting | JP4 | JP8 | JP9 |
|-----------------+------+-----------------+-----------------|
| 2 floppy drives | Open | Pins 2 & 3 | Pins 1 & 2 |
| | | closed | closed |
|-----------------+------+-----------------+-----------------|
| 1 floppy, 1 IR | Open | Pins 1 & 2 | Pins 2 & 3 |
| | | closed | closed |
+------------------------------------------------------------+
