       # SUPER MICRO

          P54CT-PCI (REV. 1.2)

          Processor    Pentium
          Processor    75/90/100MHz
          Speed
          Chip Set     OPTI
          Max. Onboard 128MB
          DRAM
          Cache        256/512/1024KB
          BIOS         AMI
          Dimensions   330mm x 218mm
          I/O Options  32-bit VESA local bus slot, 32-bit PCI slots (4),
                       green PC connector
          NPU Options  None

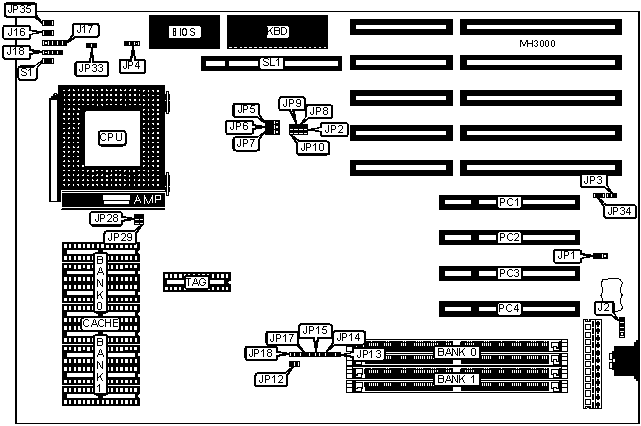

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose            | Location | Purpose         | Location |
          |--------------------+----------+-----------------+----------|
          | External battery   |    J2    | Turbo LED       |   JP35   |
          |--------------------+----------+-----------------+----------|
          | Turbo switch       |   J16    | 32-bit PCI      |  PC1 -   |
          |                    |          | slots           |   PC4    |
          |--------------------+----------+-----------------+----------|
          | Power LED &        |   J17    | Reset switch    |    S1    |
          | keylock            |          |                 |          |
          |--------------------+----------+-----------------+----------|
          | Speaker            |   J18    | 32-bit VESA     |   SL1    |
          |                    |          | local bus slot  |          |
          |--------------------+----------+-----------------+----------|
          | Green PC connector |   JP34   |                 |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | CMOS memory normal operation     |  JP1   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | CMOS memory clear                |  JP1   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP2   |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP3   |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP4   | pins 2 & 3 |
          |   | alter                            |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP5   | pins 1 & 2 |
          |   | alter                            |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP6   | pins 1 & 2 |
          |   | alter                            |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP7   | pins 1 & 2 |
          |   | alter                            |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP12  |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP13  |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP14  |   Closed   |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP15  |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP17  |   Closed   |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP18  |   Closed   |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP33  |    Open    |
          |   | alter                            |        |            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       2MB        |   (2) 256K x 36    |        NONE        |
          |------------------+--------------------+--------------------|
          |       4MB        |   (2) 512K x 36    |        NONE        |
          |------------------+--------------------+--------------------|
          |       4MB        |   (2) 256K x 36    |   (2) 256K x 36    |
          |------------------+--------------------+--------------------|
          |       6MB        |   (2) 256K x 36    |   (2) 512K x 36    |
          |------------------+--------------------+--------------------|
          |       8MB        |    (2) 1M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       8MB        |   (2) 512K x 36    |   (2) 512K x 36    |
          |------------------+--------------------+--------------------|
          |       10MB       |   (2) 256K x 36    |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       12MB       |   (2) 512K x 36    |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 2M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 1M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       18MB       |   (2) 256K x 36    |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       20MB       |   (2) 512K x 36    |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       24MB       |    (2) 1M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 4M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 2M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       34MB       |   (2) 256K x 36    |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       36MB       |   (2) 512K x 36    |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       40MB       |    (2) 1M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       48MB       |    (2) 2M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 8M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 4M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       66MB       |   (2) 256K x 36    |    (2) 8M x 36     |
          |------------------+--------------------+--------------------|
          |       68MB       |   (2) 512K x 36    |    (2) 8M x 36     |
          |------------------+--------------------+--------------------|
          |       72MB       |    (2) 1M x 36     |    (2) 8M x 36     |
          |------------------+--------------------+--------------------|
          |       80MB       |    (2) 2M x 36     |    (2) 8M x 36     |
          |------------------+--------------------+--------------------|
          |       96MB       |    (2) 4M x 36     |    (2) 8M x 36     |
          |------------------+--------------------+--------------------|
          |      128MB       |    (2) 8M x 36     |    (2) 8M x 36     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |    Size    |    Bank 0     |    Bank 1     |      TAG      |
          |------------+---------------+---------------+---------------|
          |   256KB    |  (4) 32K x 8  |  (4) 32K x 8  |  (1) 32K x 8  |
          |------------+---------------+---------------+---------------|
          |   512KB    |  (4) 64K x 8  |  (4) 64K x 8  |  (1) 32K x 8  |
          |------------+---------------+---------------+---------------|
          |    1MB     | (4) 128K x 8  | (4) 128K x 8  |  (1) 32K x 8  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          |       Size        |        JP28        |       JP29        |
          |-------------------+--------------------+-------------------|
          |       256KB       |        Open        |       Open        |
          |-------------------+--------------------+-------------------|
          |       512KB       |       Closed       |       Open        |
          |-------------------+--------------------+-------------------|
          |        1MB        |       Closed       |      Closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  CPU SPEED CONFIGURATION                   |
          |------------------------------------------------------------|
          |     Speed     |     JP8      |     JP9      |     JP10     |
          |---------------+--------------+--------------+--------------|
          |     75MHz     |    Closed    |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |     90MHz     |    Closed    |     Open     |    Closed    |
          |---------------+--------------+--------------+--------------|
          |    100MHz     |     Open     |    Closed    |     Open     |
          +------------------------------------------------------------+
