       # QDI COMPUTER, INC.

          P5I430TX TITANIUM IB+

          Device Type      Mainboard
          Processor        CX 6X86/CX 6X86L/CX 686MX/AM K5/AM
                           K6/Pentium/Pentium MMX
          Processor Speed  75/90/100/120/133/150/166/180/200/233MHz
          Chip Set         Intel
          Video Chip Set   None
          Maximum Onboard  256MB (EDO & SDRAM supported)
          Memory
          Maximum Video    None
          Memory
          Cache            256/512KB
          BIOS             Award
          Dimensions       250mm x 220mm
          I/O Options      32-bit PCI slots (4), floppy drive interface,
                           green PC connector, IDE interfaces (2),
                           parallel port, PS/2 mouse interface, serial
                           ports (2), IR connector, USB connectors (2),
                           ATX power connector
          NPU Options      None

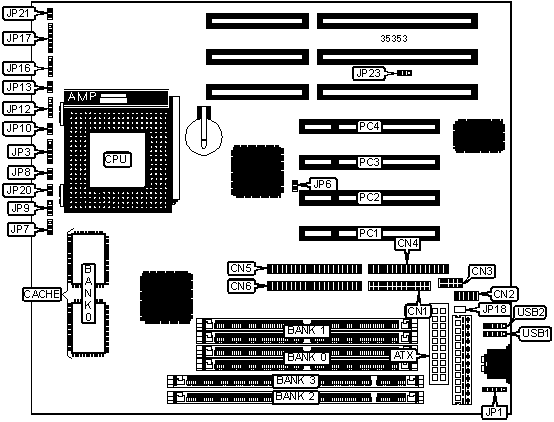

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | ATX power        |   ATX    | Reset switch      |   JP10   |
          | connector        |          |                   |          |
          |------------------+----------+-------------------+----------|
          | Parallel port    |   CN1    | IDE interface LED |   JP12   |
          |------------------+----------+-------------------+----------|
          | Serial port 1    |   CN2    | Turbo LED         |   JP13   |
          |------------------+----------+-------------------+----------|
          | Serial port 2    |   CN3    | Speaker           |   JP16   |
          |------------------+----------+-------------------+----------|
          | Floppy drive     |   CN4    | IR connector      |   JP17   |
          | interface        |          |                   |          |
          |------------------+----------+-------------------+----------|
          | IDE interface 2  |   CN5    | Soft off power    |   JP20   |
          |                  |          | supply            |          |
          |------------------+----------+-------------------+----------|
          | IDE interface 1  |   CN6    | Green PC LED      |   JP21   |
          |------------------+----------+-------------------+----------|
          | PS/2 mouse       |   JP1    | Wake on modem     |   JP23   |
          | interface        |          | connector         |          |
          |------------------+----------+-------------------+----------|
          | Power LED &      |   JP3    | 32-bit PCI slots  |  PC1 –   |
          | keylock          |          |                   |   PC4    |
          |------------------+----------+-------------------+----------|
          | CPU fan power    |   JP7    | USB connector 1   |   USB1   |
          |------------------+----------+-------------------+----------|
          | Green PC         |   JP8    | USB connector 2   |   USB2   |
          | connector        |          |                   |          |
          |------------------+----------+-------------------+----------|
          | Power LED        |   JP9    |                   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | » | CMOS memory normal operation    |  JP6  |     Open     |
          |---+---------------------------------+-------+--------------|
          |   | CMOS memory clear               |  JP6  |    Closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     | JP18  | Unidentified |
          |   | alter                           |       |              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     SIMM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       8MB        |    (2) 1M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 2M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 1M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       24MB       |    (2) 2M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 4M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 2M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       40MB       |    (2) 4M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       48MB       |    (2) 4M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 8M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 4M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       72MB       |    (2) 8M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       80MB       |    (2) 8M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       96MB       |    (2) 8M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |      128MB       |    (2) 8M x 36     |    (2) 8M x 36     |
          |------------------+--------------------+--------------------|
          |      128MB       |    (2) 16M x 36    |        None        |
          |------------------+--------------------+--------------------|
          |      136MB       |    (2) 16M x 36    |    (2) 1M x 36     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 SIMM CONFIGURATION (CON’T)                 |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |      144MB       |    (2) 16M x 36    |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |      160MB       |    (2) 16M x 36    |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |      192MB       |    (2) 16M x 36    |    (2) 8M x 36     |
          |------------------+--------------------+--------------------|
          |      256MB       |    (2) 16M x 36    |    (2) 16M x 36    |
          |------------------------------------------------------------|
          | Note: Board accepts EDO memory.                            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIMM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 2       |       Bank 3       |
          |------------------+--------------------+--------------------|
          |       8MB        |    (1) 1M x 64     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (1) 2M x 64     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (1) 1M x 64     |    (1) 1M x 64     |
          |------------------+--------------------+--------------------|
          |       24MB       |    (1) 2M x 64     |    (1) 1M x 64     |
          |------------------+--------------------+--------------------|
          |       32MB       |    (1) 4M x 64     |        None        |
          |------------------+--------------------+--------------------|
          |       32MB       |    (1) 2M x 64     |    (1) 2M x 64     |
          |------------------+--------------------+--------------------|
          |       40MB       |    (1) 4M x 64     |    (1) 1M x 64     |
          |------------------+--------------------+--------------------|
          |       48MB       |    (1) 4M x 64     |    (1) 2M x 64     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (1) 4M x 64     |    (1) 4M x 64     |
          |------------------------------------------------------------|
          |      Note: Board accepts SDRAM memory.                     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |            Size            |            Bank 0             |
          |----------------------------+-------------------------------|
          |           256KB            |         (2) 32K x 32          |
          |----------------------------+-------------------------------|
          |           512KB            |         (2) 64K x 32          |
          +------------------------------------------------------------+
