       # PC WARE INTERNATIONAL, INC.

          MB-TAURUS

          Processor        Pentium Pro
          Processor Speed  150/166/180/200MHz
          Chip Set         Intel
          Video Chip Set   None
          Maximum Onboard  128MB
          Memory
          Maximum Video    None
          Memory
          Cache            256/512KB (located on Pentium Pro CPU)
          BIOS             Award
          Dimensions       254mm x 218mm
          I/O Options      32-bit PCI slots (4), floppy drive interface,
                           green PC connector, IDE interfaces (2),
                           parallel port, PS/2 mouse port, serial ports
                           (2), VRM connector, USB connector
          NPU Options      None

 (IMG) IMG 1


          +------------------------------------------------------------+

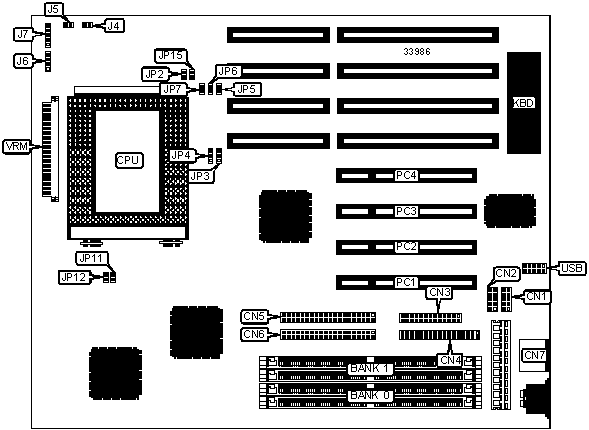

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose          | Location |
          |-------------------+----------+------------------+----------|
          | Serial port 1     |   CN1    | Reset switch     |    J5    |
          |-------------------+----------+------------------+----------|
          | Serial port 2     |   CN2    | Speaker          |    J6    |
          |-------------------+----------+------------------+----------|
          | Parallel port     |   CN3    | Power LED &      |    J7    |
          |                   |          | keylock          |          |
          |-------------------+----------+------------------+----------|
          | Floppy drive      |   CN4    | Green PC         | JP3 pins |
          | interface         |          | connector        |  1 & 2   |
          |-------------------+----------+------------------+----------|
          | IDE interface 2   |   CN5    | 32-bit PCI slots |  PC1 –   |
          |                   |          |                  |   PC4    |
          |-------------------+----------+------------------+----------|
          | IDE interface 1   |   CN6    | USB connector    |   USB    |
          |-------------------+----------+------------------+----------|
          | PS/2 mouse port   |   CN7    | VRM connector    |   VRM    |
          |-------------------+----------+------------------+----------|
          | IDE interface LED |    J4    |                  |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |             Function              | Label |    Position    |
          |-----------------------------------+-------+----------------|
          | ? | Flash BIOS voltage select 12v |  JP2  |   Pins 2 & 3   |
          |   |                               |       |     closed     |
          |---+-------------------------------+-------+----------------|
          |   | Flash BIOS voltage select 5v  |  JP2  |   Pins 1 & 2   |
          |   |                               |       |     closed     |
          |---+-------------------------------+-------+----------------|
          | ? | CMOS memory normal operation  | JP15  |      Open      |
          |---+-------------------------------+-------+----------------|
          |   | CMOS memory clear             | JP15  |     Closed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       8MB        |    (2) 1M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 2M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 1M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       24MB       |    (2) 2M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 4M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 2M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       40MB       |    (2) 4M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       48MB       |    (2) 4M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 8M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 4M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       72MB       |    (2) 8M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       80MB       |    (2) 8M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       96MB       |    (2) 8M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |      128MB       |    (2) 8M x 36     |    (2) 8M x 36     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          | Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
          +------------------------------------------------------------+

          +--------------------------------------------------------------+
          |                     CPU SPEED SELECTION                      |
          |--------------------------------------------------------------|
          | CPU  |Clock|Multiplier|JP4| JP5  | JP6  | JP7  | JP11 | JP12 |
          |speed |speed|          |   |      |      |      |      |      |
          |------+-----+----------+---+------+------+------+------+------|
          |150MHz|60MHz|   2.5x   |1 &| Open |Closed|Closed|Closed| Open |
          |      |     |          | 2 |      |      |      |      |      |
          |------+-----+----------+---+------+------+------+------+------|
          |166MHz|66MHz|   2.5x   |1 &| Open |Closed|Closed| Open |Closed|
          |      |     |          | 2 |      |      |      |      |      |
          |------+-----+----------+---+------+------+------+------+------|
          |180MHz|60MHz|    3x    |1 &|Closed| Open |Closed|Closed| Open |
          |      |     |          | 2 |      |      |      |      |      |
          |------+-----+----------+---+------+------+------+------+------|
          |200MHz|66MHz|    3x    |1 &|Closed| Open |Closed| Open |Closed|
          |      |     |          | 2 |      |      |      |      |      |
          |--------------------------------------------------------------|
          |Note: Pins designated should be in the closed position.       |
          +--------------------------------------------------------------+
