       # PINE TECHNOLOGY

          PT-2003

       Processor  Pentium
       Processor  75(internal)/90(internal)/100(internal)/120(internal)/133(internal)MHz
       Speed
       Chip Set   Intel
       Max.       128MB
       Onboard
       DRAM
       Cache      256/512KB
       BIOS       Award
       Dimensions 320mm x 218mm
       I/O        Parallel port, serial ports (2), cache slot, 32-bit PCI slots (4),
       Options    floppy drive interface, IDE interfaces (2), VRM connector, green PC
                  connector
       NPU        None
       Options

 (IMG) IMG 1


          +------------------------------------------------------------+

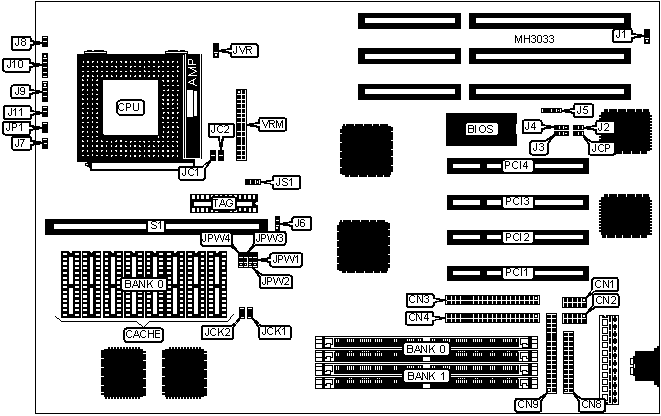

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose             | Location | Purpose        | Location |
          |---------------------+----------+----------------+----------|
          | Serial port 1       |   CN1    | Green PC       |    J8    |
          |                     |          | connector      |          |
          |---------------------+----------+----------------+----------|
          | Serial port 2       |   CN2    | Speaker        |    J9    |
          |---------------------+----------+----------------+----------|
          | IDE interface       |   CN3    | Power LED &    |   J10    |
          | (primary)           |          | keylock        |          |
          |---------------------+----------+----------------+----------|
          | IDE interface       |   CN4    | Reset switch   |   J11    |
          | (secondary)         |          |                |          |
          |---------------------+----------+----------------+----------|
          | Parallel port       |   CN8    | IDE interface  |   JP1    |
          |                     |          | LED            |          |
          |---------------------+----------+----------------+----------|
          | Floppy drive        |   CN9    | 32-bit PCI     |  PCI1 -  |
          | interface           |          | slots          |   PCI4   |
          |---------------------+----------+----------------+----------|
          | External battery    |    J5    | Cache slot     |    S1    |
          |---------------------+----------+----------------+----------|
          | Chassis fan power   |    J7    | VRM connector  |   VRM    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function                | Jumper  | Position |
          |---------------------------------------+---------+----------|
          | » | Factory configured - do not alter |   J1    |   N/A    |
          |---+-----------------------------------+---------+----------|
          | » | Monitor type select monochrome    |   J2    |   Open   |
          |---+-----------------------------------+---------+----------|
          |   | Monitor type select color         |   J2    |  Closed  |
          |---+-----------------------------------+---------+----------|
          | » | CMOS memory normal operation      |   JCP   |   Open   |
          |---+-----------------------------------+---------+----------|
          |   | CMOS memory clear                 |   JCP   |  Closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       8MB        |    (2) 1M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 2M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       24MB       |    (2) 2M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 2M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       40MB       |    (2) 4M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       48MB       |    (2) 4M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 4M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 8M x 36     |        NONE        |
          |------------------+--------------------+--------------------|
          |       72MB       |    (2) 8M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       80MB       |    (2) 8M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       96MB       |    (2) 8M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |      128MB       |    (2) 8M x 36     |    (2) 8M x 36     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |     » Size       |       Bank 0       |        TAG         |
          |------------------+--------------------+--------------------|
          |   |    256KB     |    (8) 32K x 8     |     (1) 8K x 8     |
          |---+--------------+--------------------+--------------------|
          |   |    512KB     |    (8) 64K x 8     |    (1) 32K x 8     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          |          » Size            |              JS1              |
          |----------------------------+-------------------------------|
          |   |         256KB          |       pins 1 & 2 closed       |
          |---+------------------------+-------------------------------|
          |   |         512KB          |       pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                CACHE VOLTAGE CONFIGURATION                 |
          |------------------------------------------------------------|
          | » Voltage |    JPW1    |   JPW2    |   JPW3    |   JPW4    |
          |-----------+------------+-----------+-----------+-----------|
          | » | Mixed | pins 1 & 2 | pins 1 &  | pins 1 &  | pins 1 &  |
          |   |       |   closed   | 2 closed  | 2 closed  | 2 closed  |
          |---+-------+------------+-----------+-----------+-----------|
          | » | 3.3 v | pins 2 & 3 | pins 2 &  | pins 2 &  | pins 2 &  |
          |   |       |   closed   | 3 closed  | 3 closed  | 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  CPU SPEED CONFIGURATION                   |
          |------------------------------------------------------------|
          |    Speed     |    JCK1    |    JCK2    |        J6         |
          |--------------+------------+------------+-------------------|
          |    75iMHz    |   Closed   |   Closed   | pins 1 & 2 closed |
          |--------------+------------+------------+-------------------|
          |    90iMHz    |   Closed   |    Open    | pins 2 & 3 closed |
          |--------------+------------+------------+-------------------|
          |   100iMHz    |    Open    |   Closed   | pins 2 & 3 closed |
          |--------------+------------+------------+-------------------|
          |   120iMHz    |   Closed   |    Open    | pins 2 & 3 closed |
          |--------------+------------+------------+-------------------|
          |   133iMHz    |    Open    |   Closed   | pins 2 & 3 closed |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CPU VOLTAGE CONFIGURATION                  |
          |------------------------------------------------------------|
          |         » Voltage          |              JVR              |
          |----------------------------+-------------------------------|
          | » |         3.38 v         |       pins 2 & 3 closed       |
          |---+------------------------+-------------------------------|
          | » |         3.5 v          |       pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             CPU /BUS CLOCK RATIO CONFIGURATION             |
          |------------------------------------------------------------|
          |       Ratio       |        JC1         |        JC2        |
          |-------------------+--------------------+-------------------|
          |        1/2        |       Closed       |       Open        |
          |-------------------+--------------------+-------------------|
          |        1/3        |        Open        |      Closed       |
          |-------------------+--------------------+-------------------|
          |        2/3        |        Open        |       Open        |
          |-------------------+--------------------+-------------------|
          |        2/5        |       Closed       |      Closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               FLASH EPROM TYPE CONFIGURATION               |
          |------------------------------------------------------------|
          |       » Type         |        J3        |        J4        |
          |----------------------+------------------+------------------|
          | » |   SST 29EE010    |    pins 2 & 3    |    pins 2 & 3    |
          |   |                  |      closed      |      closed      |
          |---+------------------+------------------+------------------|
          | » |   Intel 28F010   |    pins 1 & 2    |    pins 2 & 3    |
          |   |                  |      closed      |      closed      |
          |---+------------------+------------------+------------------|
          | » | Intel 28F001BX-T |    pins 1 & 2    |    pins 1 & 2    |
          |   |                  |      closed      |      closed      |
          +------------------------------------------------------------+
