       # PC BRAND

          286/12 80286-12MHZ

          Processor         80286
          Processor Speed   12MHz
          Chip Set          Unidentified
          Max. Onboard DRAM 8MB
          Cache             None
          BIOS              AMI
          Dimensions        330mm x 218mm
          I/O Options       None
          NPU Options       80287

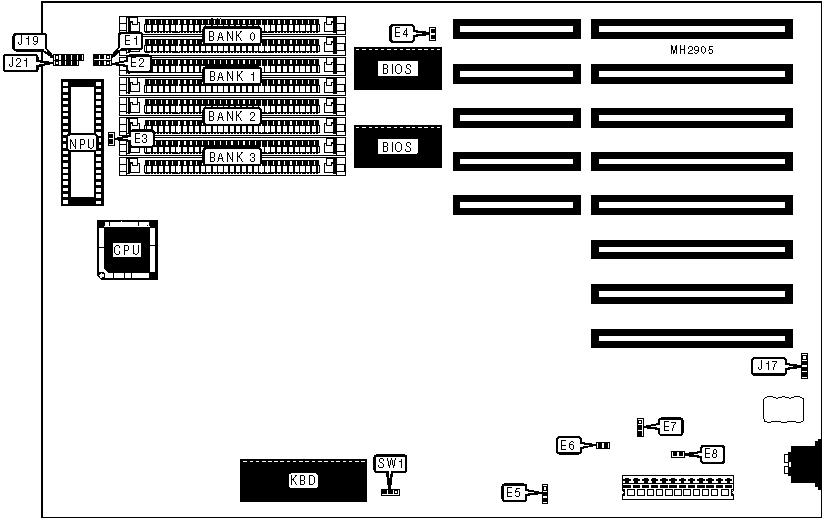

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | Turbo LED        |    E3    | Speaker           |   J19    |
          |------------------+----------+-------------------+----------|
          | Reset switch     |    E6    | Power LED &       |   J21    |
          |                  |          | keylock           |          |
          |------------------+----------+-------------------+----------|
          | External battery |   J17    |                   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Factory configured - do not      |   E4   |    N/A     |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | CMOS memory normal operation     |   E5   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | CMOS memory clear                |   E5   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Reset switch active at all times |   E7   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Reset switch active only when    |   E7   | pins 2 & 3 |
          |   | keyboard is locked               |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |   E8   |    N/A     |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Monitor type select monochrome   |  SW1   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select color        |  SW1   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size  |   Bank 0    |   Bank 1   |   Bank 2   |   Bank 3   |
          |-------+-------------+------------+------------+------------|
          | 512KB | (2) 256K x  |    NONE    |    NONE    |    NONE    |
          |       |      9      |            |            |            |
          |-------+-------------+------------+------------+------------|
          |  1MB  | (2) 256K x  | (2) 256K x |    NONE    |    NONE    |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  2MB  | (2) 256K x  | (2) 256K x | (2) 256K x | (2) 256K x |
          |       |      9      |     9      |     9      |     9      |
          |-------+-------------+------------+------------+------------|
          |  4MB  | (2) 1M x 9  | (2) 1M x 9 |    NONE    |    NONE    |
          |-------+-------------+------------+------------+------------|
          |  8MB  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  NPU SPEED CONFIGURATION                   |
          |------------------------------------------------------------|
          |      Speed       |         E1         |         E2         |
          |------------------+--------------------+--------------------|
          |       High       | pins 1 & 2 closed  | pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |       Low        | pins 2 & 3 closed  | pins 2 & 3 closed  |
          +------------------------------------------------------------+
