       # RELIALOGIC CORPORATION PRIVATE, LTD.

          R486DX 33 MIBBC

          Processor         80486SX/80487SX/80486DX/80486DX2
          Processor Speed   25/33/50(internal)/66(internal)MHz
          Chip Set          UMC
          Max. Onboard DRAM 32MB
          Cache             64/128/256KB
          BIOS              AMI
          Dimensions        330mm x 218mm
          I/O Options       None
          NPU Options       None

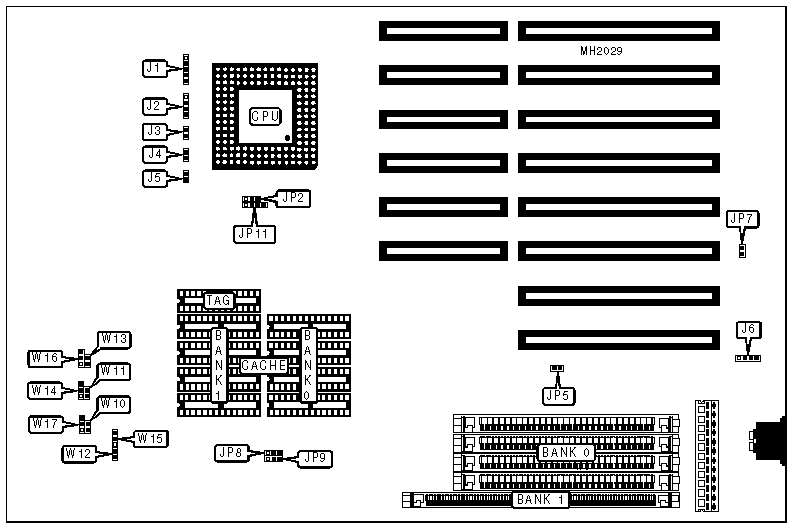

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose          | Location |
          |-------------------+----------+------------------+----------|
          | Power LED &       |    J1    | Turbo switch     |    J4    |
          | keylock           |          |                  |          |
          |-------------------+----------+------------------+----------|
          | Speaker           |    J2    | Reset switch     |    J5    |
          |-------------------+----------+------------------+----------|
          | Turbo LED         |    J3    | External battery |    J6    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Monitor type select CGA          |  JP5   |   Closed   |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select monochrome   |  JP5   |    Open    |
          |   | EGA/VGA                          |        |            |
          |---+----------------------------------+--------+------------|
          | » | Battery type select internal     |  JP7   |   Closed   |
          |---+----------------------------------+--------+------------|
          |   | Battery type select external     |  JP7   |    Open    |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP8   |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP9   | pins 1 & 2 |
          |   | alter                            |        |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |   (1) 256K x 36    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |    (4) 256K x 9    |    (1) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |    (1) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       20MB       |     (4) 1M x 9     |    (1) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |    (1) 4M x 36     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |    Size    |    Bank 0     |    Bank 1     |      TAG      |
          |------------+---------------+---------------+---------------|
          |    64KB    |  (4) 8K x 8   |  (4) 8K x 8   |  (2) 16K x 4  |
          |------------+---------------+---------------+---------------|
          |   128KB    |  (4) 32K x 8  |     NONE      |  (2) 16K x 4  |
          |------------+---------------+---------------+---------------|
          |   256KB    |  (4) 32K x 8  |  (4) 32K x 8  |  (2) 16K x 4  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          | Size | W10  | W11  | W12  | W13  | W14  | W15  | W16 | W17 |
          |------+------+------+------+------+------+------+-----+-----|
          | 64KB | Open | Open | Open | Open |1 & 2 |1 & 2 |1 & 2|Open |
          |------+------+------+------+------+------+------+-----+-----|
          |128KB |Closed| Open |Closed| Open |1 & 2 |1 & 2 |2 & 3|1 & 2|
          |------+------+------+------+------+------+------+-----+-----|
          |256KB |Closed|Closed|Closed|Closed|2 & 3 |2 & 3 |1 & 2|2 & 3|
          |------------------------------------------------------------|
          |Note: Pins designated should be in the closed position.     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   CPU TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |    Type     |        JP2        |           JP11           |
          |-------------+-------------------+--------------------------|
          |   80486SX   |       Open        |    pins 2 & 3 closed     |
          |-------------+-------------------+--------------------------|
          |   80487SX   | pins 1 & 2 closed | pins 1 & 2, 3 & 4 closed |
          |-------------+-------------------+--------------------------|
          | 80486DX/DX2 | pins 2 & 3 closed | pins 1 & 2, 3 & 4 closed |
          +------------------------------------------------------------+
