       # RELIALOGIC CORPORATION PRIVATE, LTD.

          R386XX MBC

          Processor         80386DX
          Processor Speed   33/40MHz
          Chip Set          MX
          Max. Onboard DRAM 32MB
          Cache             64/128/256KB
          BIOS              AMI
          Dimensions        330mm x 218mm
          I/O Options       None
          NPU Options       80387DX/3167

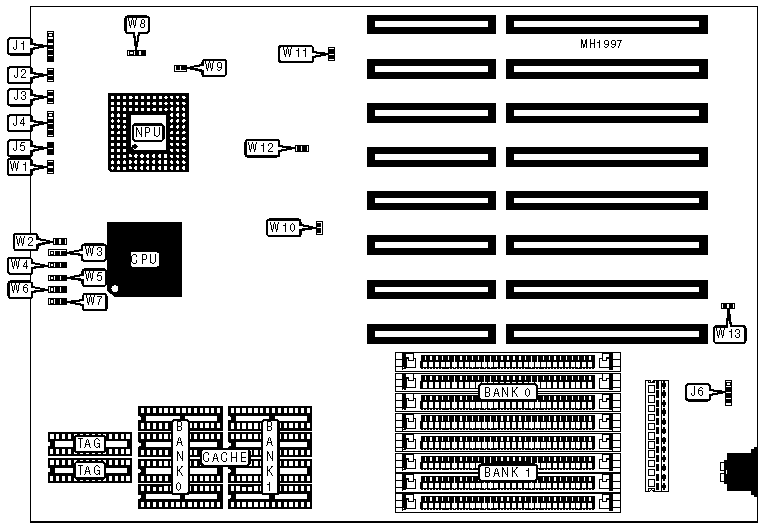

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | Power LED &      |    J1    | Turbo LED         |    J5    |
          | keylock          |          |                   |          |
          |------------------+----------+-------------------+----------|
          | Reset switch     |    J2    | External battery  |    J6    |
          |------------------+----------+-------------------+----------|
          | Turbo switch     |    J3    | IDE interface LED |    W1    |
          |------------------+----------+-------------------+----------|
          | Speaker          |    J4    |                   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function                | Jumper  | Position |
          |---------------------------------------+---------+----------|
          | » | Factory configured - do not alter |   W2    |   Open   |
          |---+-----------------------------------+---------+----------|
          | » | Factory configured - do not alter |   W8    |   Open   |
          |---+-----------------------------------+---------+----------|
          | » | Factory configured - do not alter |   W9    |   Open   |
          |---+-----------------------------------+---------+----------|
          | » | Factory configured - do not alter |   W10   |   Open   |
          |---+-----------------------------------+---------+----------|
          | » | Monitor type select color         |   W11   |  Closed  |
          |---+-----------------------------------+---------+----------|
          |   | Monitor type select monochrome    |   W11   |   Open   |
          |---+-----------------------------------+---------+----------|
          | » | Factory configured - do not alter |   W12   |   Open   |
          |---+-----------------------------------+---------+----------|
          | » | Factory configured - do not alter |   W13   |   Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |    (4) 256K x 9    |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       20MB       |     (4) 1M x 9     |     (4) 4M x 9     |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |    Size    |    Bank 0     |    Bank 1     |      TAG      |
          |------------+---------------+---------------+---------------|
          |    64KB    |  (4) 8K x 8   |  (4) 8K x 8   |  (2) 16K x 4  |
          |------------+---------------+---------------+---------------|
          |   128KB    |  (4) 32K x 8  |     NONE      |  (2) 16K x 4  |
          |------------+---------------+---------------+---------------|
          |   256KB    |  (4) 32K x 8  |  (4) 32K x 8  |  (2) 16K x 4  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          |   Size   |    W3    |    W4    |   W5    |   W6   |   W7   |
          |----------+----------+----------+---------+--------+--------|
          |   64KB   |  2 & 3   |  1 & 2   |  1 & 2  | 1 & 2  | 2 & 3  |
          |----------+----------+----------+---------+--------+--------|
          |  128KB   |  2 & 3   |  2 & 3   |  1 & 2  | 2 & 3  | 1 & 2  |
          |----------+----------+----------+---------+--------+--------|
          |  256KB   |  2 & 3   |  2 & 3   |  2 & 3  | 1 & 2  | 2 & 3  |
          |------------------------------------------------------------|
          | Note: Pins designated should be in the closed position.    |
          +------------------------------------------------------------+
