       # RELIALOGIC CORPORATION PRIVATE, LTD.

          R386DX40 MIBBC

          Processor         80386DX/CX486DLC/TI486DLC
          Processor Speed   33/40MHz
          Chip Set          ALI
          Max. Onboard DRAM 32MB
          Cache             None
          BIOS              AMI
          Dimensions        230mm x 218mm
          I/O Options       None
          NPU Options       803087SX/3167

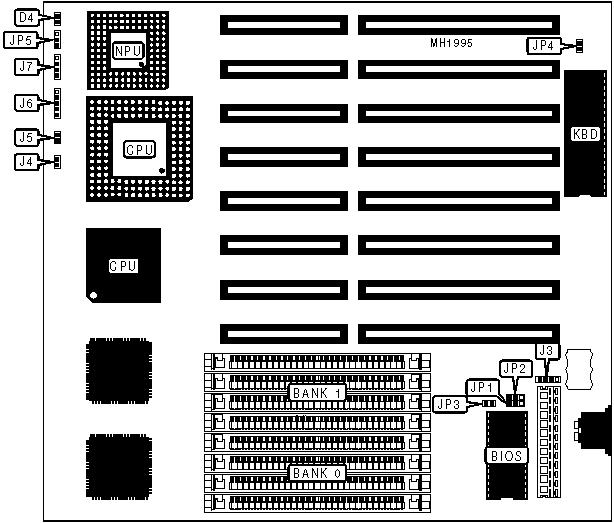

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | Turbo LED        |    D4    | Reset switch      |    J5    |
          |------------------+----------+-------------------+----------|
          | External battery |    J3    | Speaker           |    J6    |
          |------------------+----------+-------------------+----------|
          | Turbo switch     |    J4    | Power LED &       |    J7    |
          |                  |          | keylock           |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP1   |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | CMOS memory normal operation     |  JP2   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | CMOS memory clear                |  JP2   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP3   |    Open    |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | Monitor type select color        |  JP4   |    Open    |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select monochrome   |  JP4   |   Closed   |
          |---+----------------------------------+--------+------------|
          | » | CPU type select - 386DX          |  JP5   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | CPU type select - 486DLC         |  JP5   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |     (4) 1M x 9     |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       17MB       |     (4) 4M x 9     |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       20MB       |     (4) 1M x 9     |     (4) 4M x 9     |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+
