       # PINE TECHNOLOGY

          PT-321

          Processor         80386DX/Cx486DLC
          Processor Speed   25/33/40MHz
          Chip Set          MXIC
          Max. Onboard DRAM 16MB
          Cache             None
          BIOS              AMI
          Dimensions        330mm x 218mm
          I/O Options       None
          NPU Options       80387SX/CX487DLC

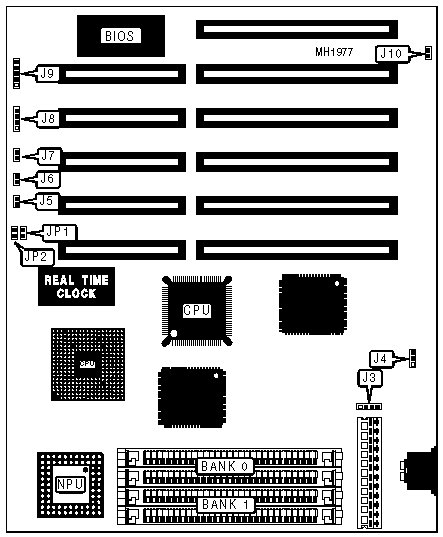

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | External battery |    J3    | Reset switch      |    J7    |
          |------------------+----------+-------------------+----------|
          | Turbo LED        |    J5    | Speaker           |    J8    |
          |------------------+----------+-------------------+----------|
          | Turbo switch     |    J6    | Power LED &       |    J9    |
          |                  |          | keylock           |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Jumper |   Position   |
          |------------------------------------+--------+--------------|
          | » | CMOS normal operation          |   J4   |  pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | CMOS clear                     |   J4   |  pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          | » | Monitor type select color      |  J10   |    Closed    |
          |---+--------------------------------+--------+--------------|
          |   | Monitor type select monochrome |  J10   |     Open     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (2) 256K x 9    |    (2) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (2) 1M x 9     |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (2) 4M x 9     |     (2) 4M x 9     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |    FREQUENCY SELECT FROM CLOCK GENERATOR CONFIGURATION     |
          |------------------------------------------------------------|
          |       Speed        |        JP1        |        JP2        |
          |--------------------+-------------------+-------------------|
          |       80MHz        |      Closed       |       Open        |
          |--------------------+-------------------+-------------------|
          |       66MHz        |       Open        |      Closed       |
          +------------------------------------------------------------+
