       # PACKARD BELL

          PB800/PACK-MATE

          Processor             80286
          Processor Speed       12/16MHz
          Chip Set              C & T
          Max. Onboard DRAM     1MB
          Cache                 None
          BIOS                  Phoenix
          Dimensions            330mm x 218mm
          I/O Options           External memory card slot
          NPU Options           80287

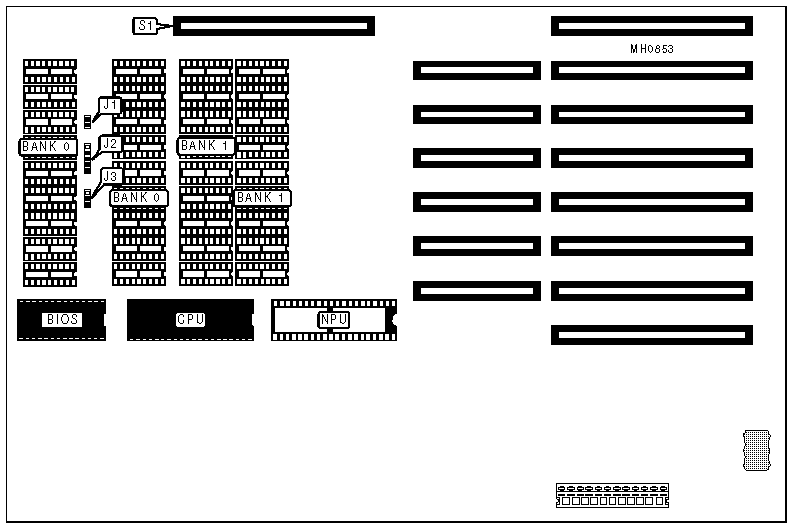

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose       | Location | Purpose              | Location |
          |---------------+----------+----------------------+----------|
          | Reset switch  |    J1    | Speaker              |    J3    |
          |---------------+----------+----------------------+----------|
          | Keylock       |    J2    | External memory card |    S1    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | NPU mode select synchronous with |  J19   | pins 1 & 2 |
          |   | CPU                              |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | NPU mode select asynchronous     |  J19   | pins 2 & 3 |
          |   | with CPU                         |        |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |  Size  |   Bank 0    |   Bank 1    |   Bank 2   |  Bank 3  |
          |--------+-------------+-------------+------------+----------|
          | 512KB  | (18) 41256  |    NONE     |    NONE    |   NONE   |
          |--------+-------------+-------------+------------+----------|
          |  1MB   | (18) 41256  | (18) 41256  |    NONE    |   NONE   |
          |--------+-------------+-------------+------------+----------|
          |  2MB   | (18) 41256  | (18) 41256  | (2) 256K x | (2) 256K |
          |        |             |             |     9      |   x 9    |
          |--------+-------------+-------------+------------+----------|
          |  3MB   | (18) 41256  | (18) 41256  | (2) 1M x 9 |   NONE   |
          |--------+-------------+-------------+------------+----------|
          |  5MB   | (18) 41256  | (18) 41256  | (2) 1M x 9 | (2) 1M x |
          |        |             |             |            |    9     |
          |--------+-------------+-------------+------------+----------|
          |  6MB   | (18) 411000 | (18) 411000 | (2) 1M x 9 |   NONE   |
          |--------+-------------+-------------+------------+----------|
          |  8MB   | (18) 411000 | (18) 411000 | (2) 1M x 9 | (2) 1M x |
          |        |             |             |            |    9     |
          |------------------------------------------------------------|
          | Note:Banks 2 & 3 are used when a proprietary external      |
          | memory card is installed at S1.                            |
          |                                                            |
          | 6MB and 8MB can be configured using Banks 0 through 3 on   |
          | the external memory card only.                             |
          +------------------------------------------------------------+
