       # QDI COMPUTER, INC.

          P386

          Processor             80386DX
          Processor Speed       33/40MHz
          Chip Set              OPTI
          Max. Onboard DRAM     32MB
          Cache                 64/256KB
          BIOS                  AMI
          Dimensions            330mm x 218mm
          I/O Options           32-bit external memory card slot
          NPU Options           80387/3167

 (IMG) IMG 1


          +------------------------------------------------------------+

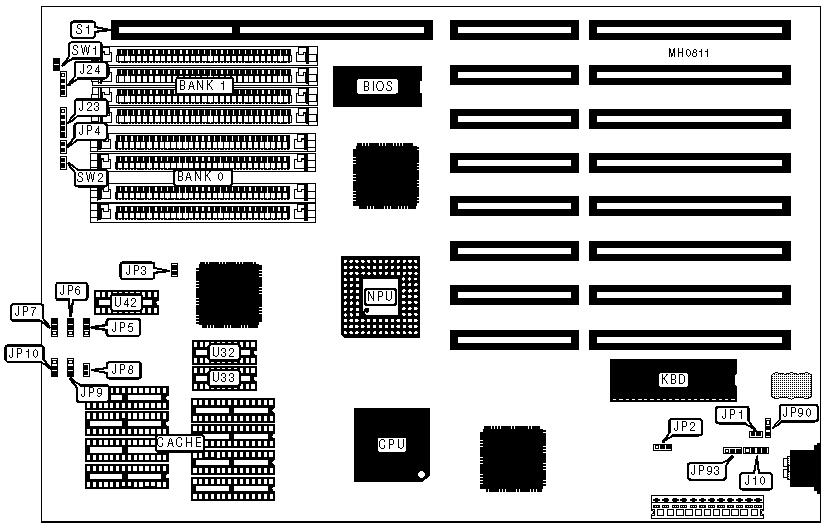

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose          | Location |
          |-------------------+----------+------------------+----------|
          | External battery  |   J10    | 32-bit external  |    S1    |
          |                   |          | memory card      |          |
          |-------------------+----------+------------------+----------|
          | Power LED &       |   J23    | Reset switch     |   SW1    |
          | keylock           |          |                  |          |
          |-------------------+----------+------------------+----------|
          | Speaker           |   J24    | Turbo switch     |   SW2    |
          |-------------------+----------+------------------+----------|
          | Turbo LED         |   JP4    |                  |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Monitor type select color        |  JP1   |   Closed   |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select monochrome   |  JP1   |    Open    |
          |---+----------------------------------+--------+------------|
          | » | CMOS memory normal operation     |  JP2   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | CMOS memory clear                |  JP2   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Bus speed select CLK2IN/8        |  JP3   |   Closed   |
          |---+----------------------------------+--------+------------|
          |   | Bus speed select CLK2IN/6        |  JP3   |    Open    |
          |---+----------------------------------+--------+------------|
          | » | Power good signal detect from    |  JP90  | pins 1 & 2 |
          |   | board                            |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Power good signal detect from    |  JP90  | pins 2 & 3 |
          |   | power supply                     |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | External battery select 3.6VDC   |  JP93  | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | External battery select 4.5VDC   |  JP93  | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | External battery select 6.0VDC   |  JP93  |    Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |    (4) 256K x 9    |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       20MB       |     (4) 1M x 9     |     (4) 4M x 9     |
          |------------------+--------------------+--------------------|
          |       20MB       |     (4) 4M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |  Size   |    Bank 0    | TAG (U32 & U33) | Dirty Bit (U42) |
          |---------+--------------+-----------------+-----------------|
          |  64KB   |  (8) 8K x 8  |   (2) 4K x 4    |   (1) 16K x 4   |
          |---------+--------------+-----------------+-----------------|
          |  256KB  | (8) 32K x 8  |   (2) 16K x 4   |   (1) 16K x 4   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          |  Size  |  JP5   |  JP6   |  JP7   |  JP8   |  JP9  | JP10  |
          |--------+--------+--------+--------+--------+-------+-------|
          |  64KB  | 2 & 3  | 1 & 2  | 1 & 2  |  Open  | 2 & 3 | 1 & 2 |
          |--------+--------+--------+--------+--------+-------+-------|
          | 256KB  | 2 & 3  | 2 & 3  | 2 & 3  | Closed | 1 & 2 | 1 & 2 |
          |------------------------------------------------------------|
          | Note:Pins designated should be in the closed position.     |
          +------------------------------------------------------------+
