       # PACKARD BELL

          386SX (FORCE 386SX/AXCEL 386SX/

          PACK-MATE 386SX/LEGEND 386SX)

          Processor        80386SX
          Processor Speed  16MHz
          Chip Set         Faraday
          Max. Onboard     4MB
          DRAM
          Cache            None
          BIOS             Phoenix
          Dimensions       330mm x 218mm
          I/O Options      Parallel port, serial ports (2), PS/2 mouse
                           port, floppy drive interface, IDE interface,
                           VGA interface
          NPU Options      80387SX

 (IMG) IMG 1


          +------------------------------------------------------------+

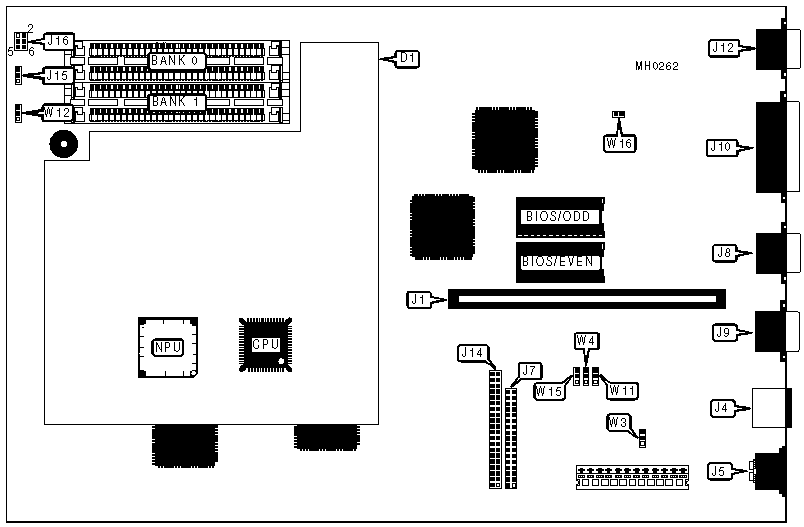

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose        |  Location  |
          |-------------------+----------+----------------+------------|
          | CPU daughterboard |    D1    | Parallel port  |    J10     |
          |                   |          | (LPT1)         |            |
          |-------------------+----------+----------------+------------|
          | Expansion slot    |    J1    | VGA interface  |    J12     |
          | card              |          |                |            |
          |-------------------+----------+----------------+------------|
          | PS/2 mouse port   |    J4    | IDE interface  |    J14     |
          |-------------------+----------+----------------+------------|
          | Keyboard          |    J5    | Keylock        |    J15     |
          |-------------------+----------+----------------+------------|
          | Floppy drive      |    J7    | Reset switch   | J16 pins 1 |
          | interface         |          |                |    & 2     |
          |-------------------+----------+----------------+------------|
          | Serial port 2     |    J8    | IDE LED        | J16 pins 3 |
          |                   |          |                |    & 4     |
          |-------------------+----------+----------------+------------|
          | Serial port 1     |    J9    | Keyswitch      | J16 pins 5 |
          |                   |          |                |    & 6     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Monitor type select color        |   W3   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select monochrome   |   W3   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Floppy drive IRQ6 enabled        |   W4   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Floppy drive IRQ6 disabled       |   W4   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | VGA video IRQ9 enabled           |  W11   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | VGA video IRQ9 disabled          |  W11   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | IDE access LED enabled           |  W12   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | IDE access LED disabled          |  W12   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  W15   |    N/A     |
          |   | alter                            |        |            |
          |---+----------------------------------+--------+------------|
          | » | PS/2 mouse IRQ12 enabled         |  W16   |   closed   |
          |---+----------------------------------+--------+------------|
          |   | PS/2 mouse IRQ12 disabled        |  W16   |    open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |      512KB       |    (2) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       1MB        |    (2) 256K x 9    |    (2) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       2MB        |     (2) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |      2.5MB       |    (2) 256K x 9    |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       4MB        |     (2) 1M x 9     |     (2) 1M x 9     |
          +------------------------------------------------------------+
