       # PACKARD BELL

          PB500/TMAN PB8810

          Processor         8088
          Processor Speed   10MHz
          Chip Set          None
          Max. Onboard DRAM 768KB
          Cache             None
          BIOS              Phoenix
          Dimensions        286mm x 218mm
          I/O Options       Parallel port, serial port, floppy drive
                            interface
          NPU Options       8087

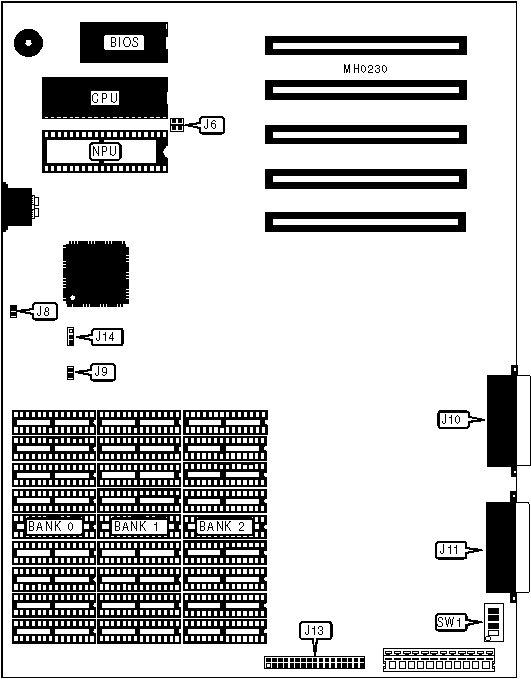

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose         | Location  | Purpose          | Location  |
          |-----------------+-----------+------------------+-----------|
          | Reset switch    |    J8     | Floppy interface |    J13    |
          |-----------------+-----------+------------------+-----------|
          | Parallel port   |    J10    | Turbo LED        |    J14    |
          |-----------------+-----------+------------------+-----------|
          | Serial port     |    J11    |                  |           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |          Function          | Jumper/Switch |   Position    |
          |----------------------------+---------------+---------------|
          | » | BIOS type select 27512 |      J6       | pins 1 & 2, 3 |
          |   |                        |               |  & 4 closed   |
          |---+------------------------+---------------+---------------|
          |   | BIOS type select 27256 |      J6       |  pins 1 & 2   |
          |   |                        |               |    closed     |
          |---+------------------------+---------------+---------------|
          |   | BIOS type select       |      J6       |     Open      |
          |   | 2764/27128             |               |               |
          |---+------------------------+---------------+---------------|
          | » | Factory configured -   |      J9       |      N/A      |
          |   | do not alter           |               |               |
          |---+------------------------+---------------+---------------|
          | » | Serial port (COM1)     |     SW1/1     |      Off      |
          |   | enabled                |               |               |
          |---+------------------------+---------------+---------------|
          |   | Serial port (COM2)     |     SW1/1     |      On       |
          |   | enabled                |               |               |
          |---+------------------------+---------------+---------------|
          | » | Parallel port (LPT1)   |     SW1/2     |      Off      |
          |   | enabled                |               |               |
          |---+------------------------+---------------+---------------|
          |   | Parallel port (LPT2)   |     SW1/2     |      On       |
          |   | enabled                |               |               |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |  Size   |     Bank 0     |     Bank 1     |     Bank 2     |
          |---------+----------------+----------------+----------------|
          |  256KB  |   (9) 41256    |      NONE      |      NONE      |
          |---------+----------------+----------------+----------------|
          |  512KB  |   (9) 41256    |   (9) 41256    |      NONE      |
          |---------+----------------+----------------+----------------|
          |  768KB  |   (9) 41256    |   (9) 41256    |   (9) 41256    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    VIDEO CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Setting        |      SW1/3       |      SW1/4       |
          |----------------------+------------------+------------------|
          |     Auto detect      |        On        |        On        |
          |----------------------+------------------+------------------|
          |   40 x 25 (color)    |        On        |       Off        |
          |----------------------+------------------+------------------|
          |   80 x 25 (color)    |       Off        |        On        |
          |----------------------+------------------+------------------|
          | 80 x 25 (monochrome) |       Off        |       Off        |
          +------------------------------------------------------------+
