       # PIONEER COMPUTER, INC.

          VANTAGE 386SX CACHE

          Processor             80386SX
          Processor Speed       20/25MHz
          Chip Set              OPTI
          Max. Onboard DRAM     16MB
          Cache                 32KB
          BIOS                  AMI
          Dimensions            330.m x 218mm
          I/O Options           None
          NPU Options           80387SX

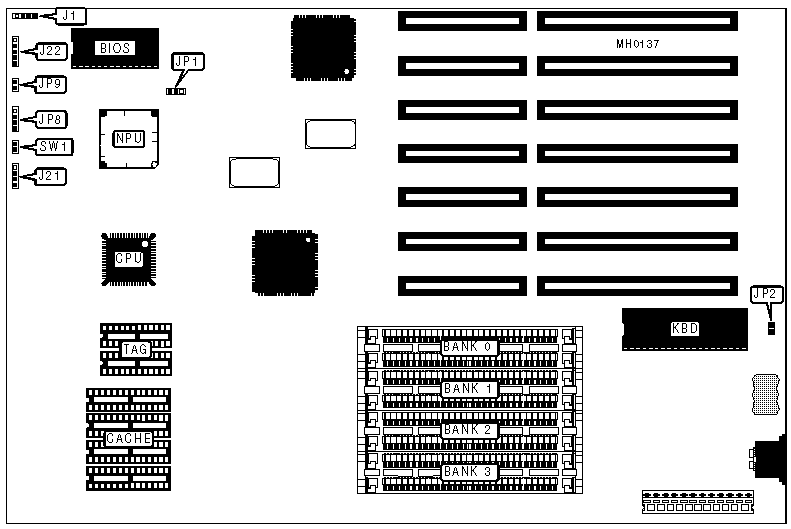

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose             | Location | Purpose        | Location |
          |---------------------+----------+----------------+----------|
          | External battery    |    J1    | Turbo LED      |   JP8    |
          |---------------------+----------+----------------+----------|
          | Speaker             |   J21    | Turbo switch   |   JP9    |
          |---------------------+----------+----------------+----------|
          | Power LED & keylock |   J22    | Reset switch   |   SW1    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | CMOS memory normal operation     |  JP1   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | CMOS memory clear                |  JP1   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP2   |    Open    |
          |   | alter                            |        |            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |   Bank 0    |   Bank 1    |   Bank 2   |   Bank 3   |
          |------+-------------+-------------+------------+------------|
          | 1MB  | (2) 256K x  | (2) 256K x  |    NONE    |    NONE    |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 2MB  | (2) 256K x  | (2) 256K x  | (2) 256K x | (2) 256K x |
          |      |      9      |      9      |     9      |     9      |
          |------+-------------+-------------+------------+------------|
          | 2MB  | (2) 1M x 9  |    NONE     |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 3MB  | (2) 256K x  | (2) 256K x  | (2) 1M x 9 |    NONE    |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 4MB  | (2) 1M x 9  | (2) 1M x 9  |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 5MB  | (2) 256K x  | (2) 256K x  | (2) 1M x 9 | (2) 1M x 9 |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 6MB  | (2) 1M x 9  | (2) 1M x 9  | (2) 1M x 9 |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 8MB  | (2) 1M x 9  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 |
          |------+-------------+-------------+------------+------------|
          | 9MB  | (2) 256K x  | (2) 256K x  | (2) 4M x 9 |    NONE    |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 10MB | (2) 1M x 9  | (2) 4M x 9  |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 12MB | (2) 1M x 9  | (2) 1M x 9  | (2) 4M x 9 |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 16MB | (2) 4M x 9  | (2) 4M x 9  |    NONE    |    NONE    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |        TAG         |
          |------------------+--------------------+--------------------|
          |       32KB       |     (4) 8K x 8     |     (2) 4K x 4     |
          +------------------------------------------------------------+
