       # MORSE TECHNOLOGIES, INC.

          KP 386SX

          Processor             80386SX
          Processor Speed       16/20MHz
          Chip Set              Morse
          Max. Onboard DRAM     8MB
          Cache                 None
          BIOS                  AMI
          Dimensions            220mm x 220mm
          I/O Options           None
          NPU Options           80387SX

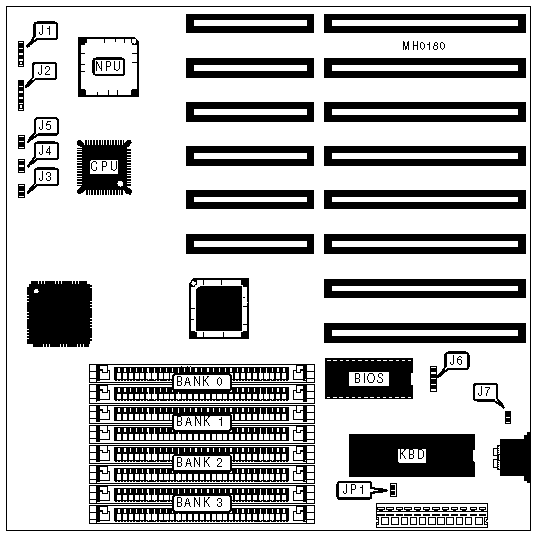

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose          | Location |
          |-------------------+----------+------------------+----------|
          | Speaker           |    J1    | Turbo LED        |    J4    |
          |-------------------+----------+------------------+----------|
          | Power LED &       |    J2    | Turbo switch     |    J5    |
          | keylock           |          |                  |          |
          |-------------------+----------+------------------+----------|
          | Reset switch      |    J3    | External battery |    J6    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper  | Position  |
          |--------------------------------------+---------+-----------|
          | » | CMOS memory normal operation     |   J7    |  Closed   |
          |---+----------------------------------+---------+-----------|
          |   | CMOS memory clear                |   J7    |   Open    |
          |---+----------------------------------+---------+-----------|
          | » | Monitor type select color        |   JP1   |  Closed   |
          |---+----------------------------------+---------+-----------|
          |   | Monitor type select monochrome   |   JP1   |   Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size  |   Bank 0    |   Bank 1   |   Bank 2   |   Bank 3   |
          |-------+-------------+------------+------------+------------|
          | 512KB | (2) 256K x  |    NONE    |    NONE    |    NONE    |
          |       |      9      |            |            |            |
          |-------+-------------+------------+------------+------------|
          |  1MB  | (2) 256K x  | (2) 256K x |    NONE    |    NONE    |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          | 1.5MB | (2) 256K x  | (2) 256K x | (2) 256K x |    NONE    |
          |       |      9      |     9      |     9      |            |
          |-------+-------------+------------+------------+------------|
          |  2MB  | (2) 256K x  | (2) 256K x | (2) 256K x | (2) 256K x |
          |       |      9      |     9      |     9      |     9      |
          |-------+-------------+------------+------------+------------|
          |  2MB  | (2) 1M x 9  |    NONE    |    NONE    |    NONE    |
          |-------+-------------+------------+------------+------------|
          |  3MB  | (2) 256K x  | (2) 256K x | (2) 1M x 9 |    NONE    |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  4MB  | (2) 1M x 9  | (2) 1M x 9 |    NONE    |    NONE    |
          |-------+-------------+------------+------------+------------|
          |  5MB  | (2) 256K x  | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  6MB  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 |    NONE    |
          |-------+-------------+------------+------------+------------|
          |  8MB  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
          +------------------------------------------------------------+
