# LUCKY STAR TECHNOLOGY CO., LTD.
6VBX2 (SOUND)
Device Type Mainboard,
Processor Pentium II/Celeron
Processor Speed 233/266/300/333/350/400/450MHz
Chip Set VIA Apollo
Maximum Onboard 512MB (EDO & SDRAM supported)
Memory
Audio Chip Set ESS
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 230mm x 220mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
game interface, green PC connector, IDE
interfaces (2), parallel port, PS/2 mouse
interface, serial ports (2), IR connector,
USB connector, ATX power connector, AGP slot,
line in, line out, microphone in, audio in –
CD-ROMs (2), SB-link connector, wake on LAN
connector

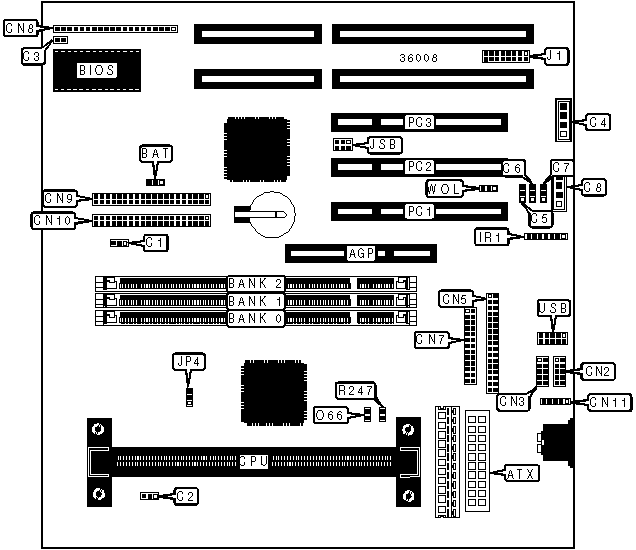

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+------------+----------------+------------|
| AGP slot | AGP | Speaker | CN8/pins 7 |
| | | | – 10 |
|-----------------+------------+----------------+------------|
| ATX power | ATX | Reset switch | CN8/pins |
| connector | | | 12 & 13 |
|-----------------+------------+----------------+------------|
| Chassis fan | C1 | IDE interface | CN8/pins |
| power | | LED | 15 & 16 |
|-----------------+------------+----------------+------------|
| Chassis fan | C2 | Turbo LED | CN8/pins |
| power | | | 18 & 19 |
|-----------------+------------+----------------+------------|
| Soft off power | C3 | Green PC | CN8/pins |
| supply | | connector | 21 & 22 |
|-----------------+------------+----------------+------------|
| Audio in – | C4 | IDE interface | CN9 |
| CD-ROM | | 1 | |
|-----------------+------------+----------------+------------|
| Microphone in | C5 | IDE interface | CN10 |
| | | 2 | |
|-----------------+------------+----------------+------------|
| Line out | C6 | PS/2 mouse | CN11 |
| | | interface | |
|-----------------+------------+----------------+------------|
| Line in | C7 | IR connector | IR1 |
|-----------------+------------+----------------+------------|
| Audio in – | C8 | Game interface | J1 |
| CD-ROM | | | |
|-----------------+------------+----------------+------------|
| Serial port 1 | CN2 | SB-link | JSB |
| | | connector | |
|-----------------+------------+----------------+------------|
| Serial port 2 | CN3 | 32-bit PCI | PC1 – PC3 |
| | | slots | |
|-----------------+------------+----------------+------------|
| Floppy drive | CN5 | CPU | R247 |
| interface | | temperature | |
| | | sensor | |
|-----------------+------------+----------------+------------|
| Parallel port | CN7 | USB connector | USB |
|-----------------+------------+----------------+------------|
| Power LED & | CN8/pins 1 | Wake on LAN | WOL |
| keylock | – 5 | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | BAT | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | BAT | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 56MB | (1) 4M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 256MB | (1) 32M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 288MB | (1) 32M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 320MB | (1) 32M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 320MB | (1) 32M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 384MB | (1) 32M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 384MB | (1) 32M x 64 | (1) 16M x 64 | None |
|------------+---------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|------------+---------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|------------+---------------+---------------+---------------|
| 512MB | (1) 32M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|------------+---------------+---------------+---------------|
| 512MB | (1) 32M x 64 | (1) 32M x 64 | None |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM FREQUENCY CONFIGURATION |
|------------------------------------------------------------|
| CPU | SDRAM | JP4 |
|-------------------+-------------------+--------------------|
| 66MHz | 66MHz | Pins 1 & 2 closed |
|-------------------+-------------------+--------------------|
| 100MHz | 66MHz | Pins 2 & 3 closed |
|-------------------+-------------------+--------------------|
| 100MHz | 100MHz | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II |
| CPU. 128KB cache is located on the Celeron 300A & 333 |
| CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | O66 |
|---------------+---------------+---------------+------------|
| 200MHz | 66MHz | 3x | Closed |
|---------------+---------------+---------------+------------|
| 233MHz | 66MHz | 3.5x | Closed |
|---------------+---------------+---------------+------------|
| 266MHz | 66MHz | 4x | Closed |
|---------------+---------------+---------------+------------|
| 300MHz | 66MHz | 4.5x | Closed |
|---------------+---------------+---------------+------------|
| 333MHz | 66MHz | 5x | Closed |
|---------------+---------------+---------------+------------|
| 350MHz | 100MHz | 3.5x | Open |
|---------------+---------------+---------------+------------|
| 400MHz | 100MHz | 4x | Open |
|---------------+---------------+---------------+------------|
| 450MHz | 100MHz | 4.5x | Open |
+------------------------------------------------------------+
