       # ILON USA, INC.

          M-318

          Processor              80386
          Processor Speed        25MHz
          Chip Set               PC Chips
          Video Chip Set         None
          Maximum Onboard Memory 8MB
          Maximum Video Memory   None
          Cache                  None
          BIOS                   AMI
          Dimensions             254mm x 218mm
          I/O Options            None
          NPU Options            80387/3167

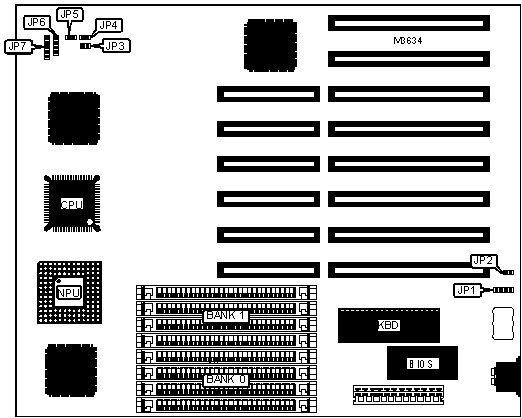

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | External battery |   JP1    | Turbo LED         |   JP5    |
          |------------------+----------+-------------------+----------|
          | Reset switch     |   JP3    | Speaker           |   JP6    |
          |------------------+----------+-------------------+----------|
          | Turbo switch     |   JP4    | Power LED &       |   JP7    |
          |                  |          | keylock           |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Label |   Position    |
          |------------------------------------+-------+---------------|
          | » | Battery type select internal   |  JP1  |  Pins 2 & 3   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          |   | Battery type select none       |  JP1  |     Open      |
          |---+--------------------------------+-------+---------------|
          | » | Monitor type select monochrome |  JP2  |     Open      |
          |---+--------------------------------+-------+---------------|
          |   | Monitor type select color      |  JP2  |    Closed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        None        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        None        |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          +------------------------------------------------------------+
