# IBM CORPORATION
VALUEPOINT 6472, 6482, 6484
Processor 80486SX/SL80486SX/80487SX/80486DX/SL80486DX/80486DX2/
SL80486DX2/80486DX4
Processor 25/33/40/50/50(internal)/66(internal)/100(internal)MHz
Speed
Chip Set Unidentified
Video Chip Unidentified
Set
Maximum 128MB
Onboard
Memory
Maximum 2MB
Video
Memory
Cache 128/256KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Floppy drive interface, IDE interfaces (2), 32-bit
Options VESA/PCI bus slot, parallel port, PS/2 mouse port,
serial ports (2), VGA port, riser slot
NPU None
Options
(IMG) IMG 1
+------------------------------------------------------------+

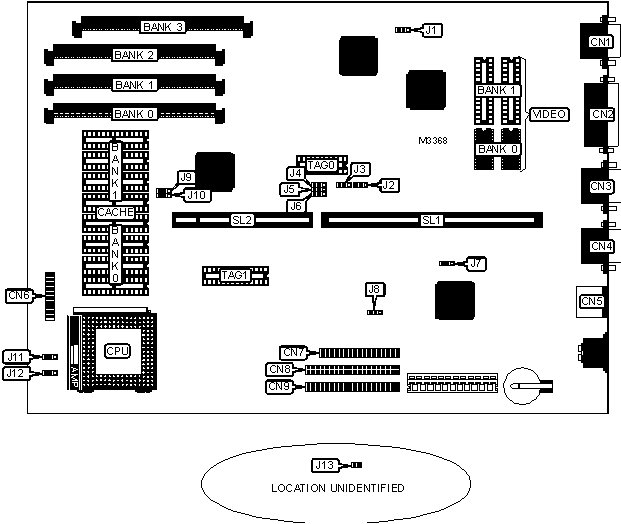

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| VGA port | CN1 | Floppy drive | CN7 |
| | | interface | |
|------------------+----------+-------------------+----------|
| Parallel port | CN2 | IDE interface | CN8 |
|------------------+----------+-------------------+----------|
| Serial port | CN3 | IDE interface | CN9 |
|------------------+----------+-------------------+----------|
| Serial port | CN4 | Riser slot | SL1 |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN5 | 32-bit VESA/PCI | SL2 |
| | | bus slot | |
|------------------+----------+-------------------+----------|
| Front panel | CN6 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| | On board video enabled | J1 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | On board video disabled | J1 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Mouse IRQ12 enabled | J7 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Mouse IRQ12 disabled | J7 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Floppy drive write protect | J8 | Pins 2 & 3 |
| | enabled | | closed |
|---+-----------------------------------+-------+------------|
| | Floppy drive write protect | J8 | Pins 1 & 2 |
| | disabled | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 2M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 2M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 2M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | (1) 2M x 36 | (1) 2M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 28MB | (1) 1M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 28MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 8M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 36 | (1) 2M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 8M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 2M x 36 | (1) 2M x 36 | (1) 8M x | None |
| | | | 36 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 2M x 36 | (1) 2M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 52MB | (1) 1M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 8M x 36 | (1) 8M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x | (1) 8M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 68MB | (1) 1M x 36 | (1) 8M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 72MB | (1) 1M x 36 | (1) 1M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 2M x 36 | (1) 2M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 84MB | (1) 1M x 36 | (1) 8M x | (1) 8M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 4M x 36 | (1) 4M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 100MB | (1) 1M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG 0 & 1 |
|----------+---------------+---------------+-----------------|
| 128KB | (4) 32K x 8 | None | Chips installed |
|----------+---------------+---------------+-----------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | Chips installed |
|------------------------------------------------------------|
| Note: The TAG chip sizes are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J9 | J10 |
|------------------+--------------------+--------------------|
| 128KB | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 256KB | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+--------------------+-----------------------|
| 1MB | (2) 512KB | None |
|---------------+--------------------+-----------------------|
| 2MB | (2) 512KB | (2) 256K x 16 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | J2 | J3 |
|------------------+--------------------+--------------------|
| 25MHz | Pins 2 & 3 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 33MHz | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 40MHz | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 50MHz | Pins 1 & 2 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 50iMHz | Pins 2 & 3 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 66iMHz | Pins 2 & 3 closed | Pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 100iMHz | Pins 1 & 2 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | J11 |
|----------------------------+-------------------------------|
| 80486SX | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 80487SX | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 80486SX2 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 80486DX | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 80486DX2 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 80486DX4 | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | J12 |
|-----------------------------+------------------------------|
| SL-enhanced | Pins 1 & 2 closed |
|-----------------------------+------------------------------|
| Non SL-enhanced | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Setting | J13 |
|------------------------------+-----------------------------|
| All CPU types | Closed |
|------------------------------+-----------------------------|
| 80486DX4 only | VRM installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA/PCI SELECTION |
|------------------------------------------------------------|
| Setting | J4 | J5 | J6 |
|---------------+------------------+------------+------------|
| VESA card | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 |
| used | closed | closed | closed |
|---------------+------------------+------------+------------|
| PCI card used | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
