       # KRIS TECHNOLOGIES

          P386 33 & 40MHz

          Processor             80386DX
          Processor Speed       33/40MHz
          Chip Set              OPTI
          Max. Onboard DRAM     32MB
          Cache                 32/64/128/256KB
          BIOS                  AMI
          Dimensions            330mm x 218mm
          I/O Options           32-bit external memory card slot
          NPU Options           80387/3167

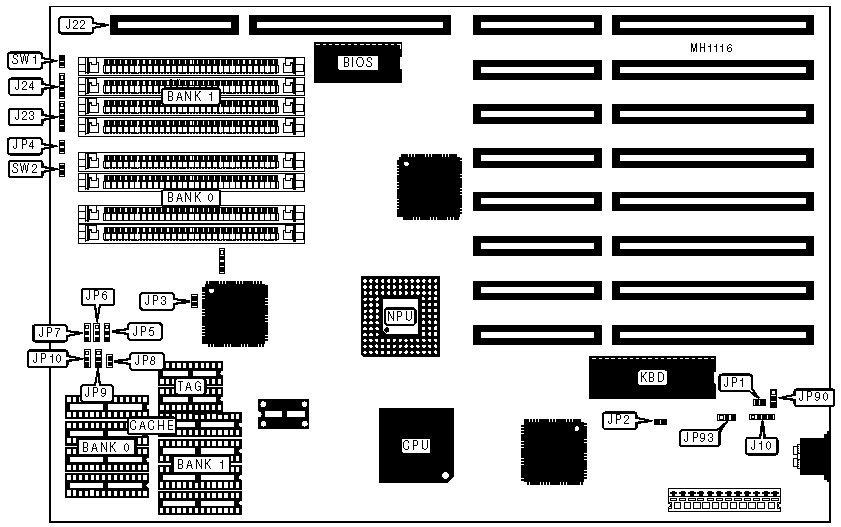

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose               | Location | Purpose      | Location |
          |-----------------------+----------+--------------+----------|
          | External battery      |   J10    | Turbo LED    |   JP4    |
          |-----------------------+----------+--------------+----------|
          | 32-bit external       |   J22    | Reset switch |   SW1    |
          | memory card           |          |              |          |
          |-----------------------+----------+--------------+----------|
          | Power LED & keylock   |   J23    | Turbo switch |   SW2    |
          |-----------------------+----------+--------------+----------|
          | Speaker               |   J24    |              |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Monitor type select monochrome   |  JP1   |    Open    |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select color        |  JP1   |   Closed   |
          |---+----------------------------------+--------+------------|
          | » | CMOS memory normal operation     |  JP2   |    Open    |
          |---+----------------------------------+--------+------------|
          |   | CMOS memory clear                |  JP2   |   Closed   |
          |---+----------------------------------+--------+------------|
          | » | Bus speed select ATCLK/6         |  JP3   |    Open    |
          |---+----------------------------------+--------+------------|
          |   | Bus speed select ATCLK/8         |  JP3   |   Closed   |
          |---+----------------------------------+--------+------------|
          | » | Power good signal detect from    |  JP90  | pins 1 & 2 |
          |   | board                            |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Power good signal detect from    |  JP90  | pins 2 & 3 |
          |   | power supply                     |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | External battery select 3.6VDC   |  JP93  | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | External battery select 4.5VDC   |  JP93  | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | External battery select 6.0VDC   |  JP93  |    Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |      Size      |       Bank 0        |       Bank 1        |
          |----------------+---------------------+---------------------|
          |      1MB       |    (4) 256K x 9     |        NONE         |
          |----------------+---------------------+---------------------|
          |      2MB       |    (4) 256K x 9     |    (4) 256K x 9     |
          |----------------+---------------------+---------------------|
          |      4MB       |     (4) 1M x 9      |        NONE         |
          |----------------+---------------------+---------------------|
          |      5MB       |    (4) 256K x 9     |     (4) 1M x 9      |
          |----------------+---------------------+---------------------|
          |      8MB       |     (4) 1M x 9      |     (4) 1M x 9      |
          |----------------+---------------------+---------------------|
          |      16MB      |     (4) 4M x 9      |        NONE         |
          |----------------+---------------------+---------------------|
          |      20MB      |     (4) 1M x 9      |     (4) 4M x 9      |
          |----------------+---------------------+---------------------|
          |      32MB      |     (4) 4M x 9      |     (4) 4M x 9      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |    Size    |    Bank 0     |    Bank 1     |      TAG      |
          |------------+---------------+---------------+---------------|
          |    32KB    |  (4) 8K x 8   |     NONE      |  (2) 4K x 4   |
          |------------+---------------+---------------+---------------|
          |    64KB    |  (4) 8K x 8   |  (4) 8K x 8   |  (2) 4K x 4   |
          |------------+---------------+---------------+---------------|
          |   128KB    |  (4) 32K x 8  |     NONE      |  (2) 16K x 4  |
          |------------+---------------+---------------+---------------|
          |   256KB    |  (4) 32K x 8  |  (4) 32K x 8  |  (2) 16K x 4  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          |  Size  |  JP5   |  JP6   |  JP7   |  JP8   |  JP9  | JP10  |
          |--------+--------+--------+--------+--------+-------+-------|
          |  32KB  | 1 & 2  | 1 & 2  | 1 & 2  |  Open  | 2 & 3 | 2 & 3 |
          |--------+--------+--------+--------+--------+-------+-------|
          |  64KB  | 2 & 3  | 1 & 2  | 1 & 2  |  Open  | 2 & 3 | 1 & 2 |
          |--------+--------+--------+--------+--------+-------+-------|
          | 128KB  | 2 & 3  | 1 & 2  | 2 & 3  | Closed | 2 & 3 | 1 & 2 |
          |--------+--------+--------+--------+--------+-------+-------|
          | 256KB  | 2 & 3  | 2 & 3  | 2 & 3  | Closed | 1 & 2 | 1 & 2 |
          |------------------------------------------------------------|
          | Note:Pins designated should be in the closed position      |
          +------------------------------------------------------------+
