# JPN CORPORATION
AT 286
Processor 80286
Processor Speed 12/16/25MHz
Chip Set ACT
Max. Onboard DRAM 4MB
Cache None
BIOS AMI
Dimensions 305mm x 222mm
I/O Options None
NPU Options 80287

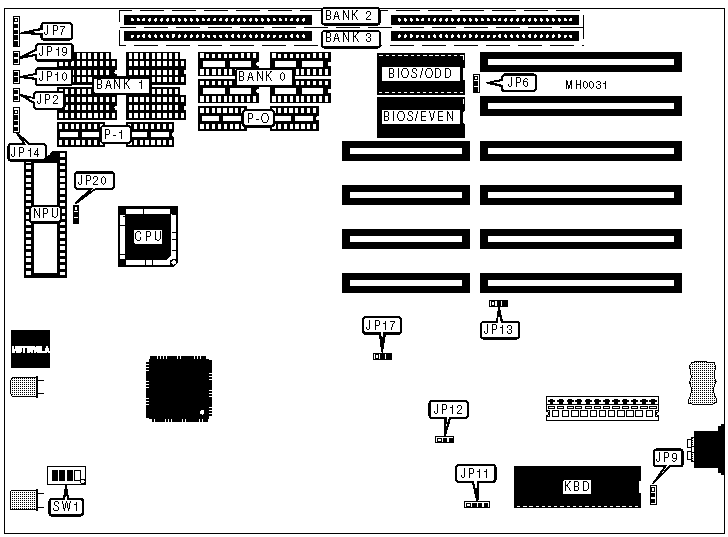

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Turbo LED | JP2 | External battery | JP11 |
|-------------------+----------+------------------+----------|
| Power LED & | JP7 | Speaker | JP14 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Reset switch | JP10 | Turbo switch | JP19 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE JUMPERS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | BIOS type select 27128 | JP6 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | BIOS type select 27256 | JP6 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Monitor type select color | JP9 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | Monitor type select | JP9 | pins 1 & 2 |
| | monochrome | | closed |
|---+---------------------------+---------------+------------|
| » | Battery select internal | JP12 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | Battery select external | JP12 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Power good signal detect | JP13 | pins 1 & 2 |
| | from power supply | | closed |
|---+---------------------------+---------------+------------|
| | Power good signal detect | JP13 | pins 2 & 3 |
| | from board | | closed |
|---+---------------------------+---------------+------------|
| » | Bus speed select 8Mhz | JP17 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | Bus speed select 6Mhz | JP17 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Parity check enabled | JP20 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | Parity check disabled | JP20 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | DRAM speed select 1 wait | SW1/4 | On |
| | state | | |
|---+---------------------------+---------------+------------|
| | DRAM speed select 0 wait | SW1/4 | Off |
| | states | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Parity | Bank 1 | Parity | Bank | Bank |
| | | (P-0) | | (P-1) | 2 | 3 |
|-------+--------+----------+--------+--------+-------+------|
| 512KB | (4) | (2) | NONE | NONE | NONE | NONE |
| | 44256 | 41256 | | | | |
|-------+--------+----------+--------+--------+-------+------|
| 512KB | NONE | NONE | NONE | NONE | (2) | NONE |
| | | | | | 256K | |
| | | | | | x 9 | |
|-------+--------+----------+--------+--------+-------+------|
| 640KB | (4) | (2) | (4) | (2) | NONE | NONE |
| | 44256 | 41256 | 4464 | 4164 | | |
|-------+--------+----------+--------+--------+-------+------|
| 640KB | NONE | NONE | (4) | (2) | (2) | NONE |
| | | | 4464 | 4164 | 256K | |
| | | | | | x 9 | |
|-------+--------+----------+--------+--------+-------+------|
| 1MB | (4) | (2) | (4) | (2) | NONE | NONE |
| | 44256 | 41256 | 44256 | 41256 | | |
|-------+--------+----------+--------+--------+-------+------|
| 1MB | (4) | (2) | NONE | NONE | NONE | (2) |
| | 44256 | 41256 | | | | 256K |
| | | | | | | x 9 |
|-------+--------+----------+--------+--------+-------+------|
| 1MB | NONE | NONE | NONE | NONE | (2) | (2) |
| | | | | | 256K | 256K |
| | | | | | x 9 | x 9 |
|-------+--------+----------+--------+--------+-------+------|
| 2MB | NONE | NONE | NONE | NONE | (2) | NONE |
| | | | | | 1M x | |
| | | | | | 9 | |
|-------+--------+----------+--------+--------+-------+------|
| 4MB | NONE | NONE | NONE | NONE | (2) | (2) |
| | | | | | 1M x | 1M x |
| | | | | | 9 | 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM SWITCH CONFIGURATION |
|------------------------------------------------------------|
| Size | SW1/1 | SW1/2 | SW1/3 |
|---------------+--------------+--------------+--------------|
| 512KB | On | On | On |
|---------------+--------------+--------------+--------------|
| 640KB | On | Off | Off |
|---------------+--------------+--------------+--------------|
| 1MB | On | Off | On |
|---------------+--------------+--------------+--------------|
| 2MB | Off | On | On |
|---------------+--------------+--------------+--------------|
| 4MB | Off | Off | On |
+------------------------------------------------------------+
