       # EVEREX SYSTEMS, INC.

          TEMPO 286/16C EV-18122

          Processor         80286
          Processor Speed   16MHz
          Chip Set          C & T
          Max. onboard DRAM 8MB
          SRAM Cache        None
          BIOS              AMI
          Dimensions        330mm x 218mm
          I/O Options       Floppy drive interface, IDE interface,

                            Parallel port, serial port (2), VGA port
          NPU Options       80287

 (IMG) IMG 1


          +------------------------------------------------------------+

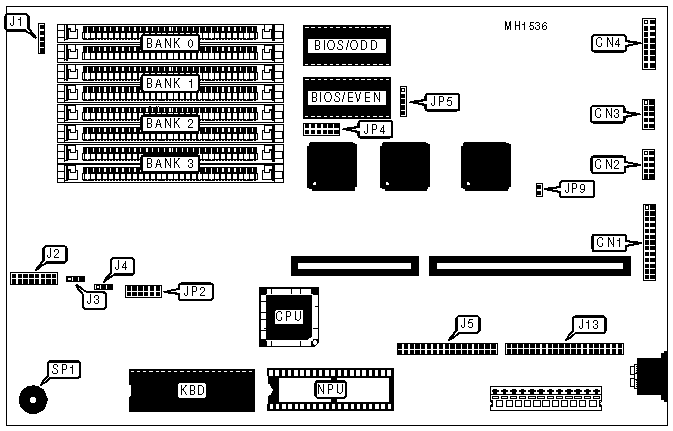

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose        | Location | Purpose             | Location |
          |----------------+----------+---------------------+----------|
          | Parallel port  |   CN1    | Speaker connector   |    J3    |
          |----------------+----------+---------------------+----------|
          | Serial port    |   CN2    | IDE interface LED   |    J4    |
          | (COM1)         |          |                     |          |
          |----------------+----------+---------------------+----------|
          | Serial port    |   CN3    | Floppy drive        |    J5    |
          | (COM2)         |          | interface           |          |
          |----------------+----------+---------------------+----------|
          | VGA port       |   CN4    | IDE interface       |   J13    |
          |----------------+----------+---------------------+----------|
          | Unknown        |    J1    | Speaker             |   SP1    |
          |----------------+----------+---------------------+----------|
          | LED connector  |    J2    |                     |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |          Function          | Jumper |       Position       |
          |----------------------------+--------+----------------------|
          | » | Factory configured -   |  JP2   | pins 1 & 2, 5 & 6, 7 |
          |   | do not alter           |        |     & 11 closed      |
          |---+------------------------+--------+----------------------|
          | » | Factory configured -   |  JP4   | Pins 3 & 4, 10 & 11  |
          |   | do not alter           |        |        closed        |
          |---+------------------------+--------+----------------------|
          | » | Factory configured -   |  JP5   |  Pins 2 & 3, 4 & 5   |
          |   | do not alter           |        |        closed        |
          |---+------------------------+--------+----------------------|
          | » | Video enabled          |  JP9   |        Closed        |
          |---+------------------------+--------+----------------------|
          |   | Video disabled         |  JP9   |         Open         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size  |   Bank 0    |   Bank 1   |   Bank 2   |   Bank 3   |
          |-------+-------------+------------+------------+------------|
          | 512KB | (2) 256K x  |    NONE    |    NONE    |    NONE    |
          |       |      9      |            |            |            |
          |-------+-------------+------------+------------+------------|
          |  1MB  | (2) 256K x  | (2) 256K x |    NONE    |    NONE    |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  2MB  | (2) 256K x  | (2) 256K x | (2) 256K x | (2) 256K x |
          |       |      9      |     9      |     9      |     9      |
          |-------+-------------+------------+------------+------------|
          |  3MB  | (2) 256K x  | (2) 256K x | (2) 1M x 9 |    NONE    |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  4MB  | (2) 1M x 9  | (2) 1M x 9 |    NONE    |    NONE    |
          |-------+-------------+------------+------------+------------|
          |  5MB  | (2) 256K x  | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  8MB  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
          +------------------------------------------------------------+
