       # HEWLETT-PACKARD COMPANY

          HP VECTRA 386S PC Series

          Processor             80386SX
          Processor Speed       20/25MHz
          Chip Set              HP
          Max. Onboard DRAM     16MB
          Cache                 None
          BIOS                  HP
          Dimensions            330mm x 218mm
          I/O Options           IDE interface, VGA port
          NPU Options           80387SX

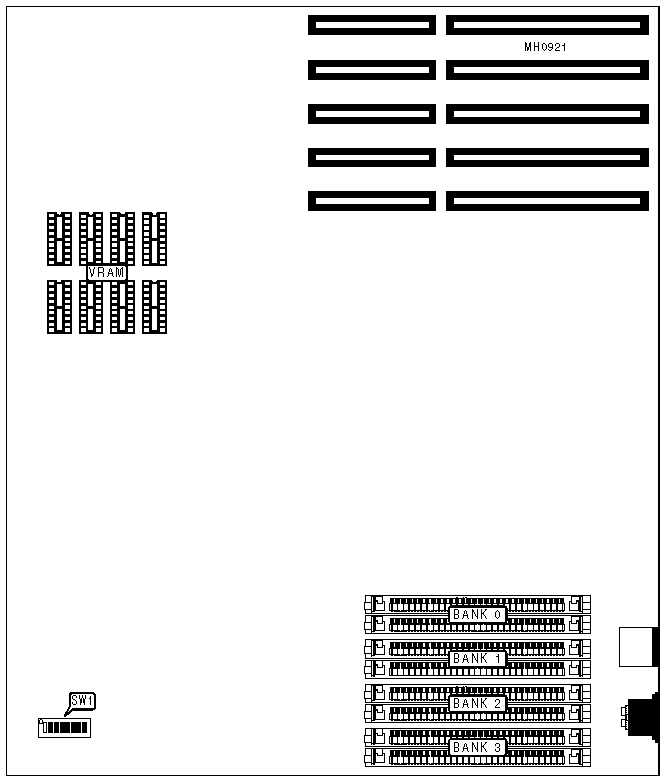

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Switch | Position |
          |----------------------------------------+--------+----------|
          | » | IRQ12 select mouse port            | SW1/1  |   Off    |
          |---+------------------------------------+--------+----------|
          |   | IRQ12 disabled                     | SW1/1  |    On    |
          |---+------------------------------------+--------+----------|
          | » | IRQ9 disabled                      | SW1/2  |   Off    |
          |---+------------------------------------+--------+----------|
          |   | IRQ9 select VGA port               | SW1/2  |    On    |
          |---+------------------------------------+--------+----------|
          | » | VGA port enabled                   | SW1/3  |   Off    |
          |---+------------------------------------+--------+----------|
          |   | VGA port disabled                  | SW1/3  |    On    |
          |---+------------------------------------+--------+----------|
          | » | Password check enabled             | SW1/4  |   Off    |
          |---+------------------------------------+--------+----------|
          |   | Password check disabled (password  | SW1/4  |    On    |
          |   | clear)                             |        |          |
          |---+------------------------------------+--------+----------|
          | » | CMOS memory normal operation       | SW1/5  |   Off    |
          |---+------------------------------------+--------+----------|
          |   | CMOS memory clear                  | SW1/5  |    On    |
          |---+------------------------------------+--------+----------|
          | » | Security mode disabled (CMOS setup | SW1/6  |   Off    |
          |   | may be changed)                    |        |          |
          |---+------------------------------------+--------+----------|
          |   | Security mode enabled (CMOS setup  | SW1/6  |    On    |
          |   | may not be changed)                |        |          |
          |---+------------------------------------+--------+----------|
          | » | Factory configured - do not alter  | SW1/7  |   Off    |
          |---+------------------------------------+--------+----------|
          | » | Factory configured - do not alter  | SW1/8  |   Off    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |  Size  |   Bank 0   |   Bank 1   |   Bank 2   |   Bank 3   |
          |--------+------------+------------+------------+------------|
          |  2MB   | (2) 1M x 9 |    NONE    |    NONE    |    NONE    |
          |--------+------------+------------+------------+------------|
          |  4MB   | (2) 1M x 9 | (2) 1M x 9 |    NONE    |    NONE    |
          |--------+------------+------------+------------+------------|
          |  6MB   | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |    NONE    |
          |--------+------------+------------+------------+------------|
          |  8MB   | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
          |--------+------------+------------+------------+------------|
          |  10MB  | (2) 1M x 9 | (2) 4M x 9 |    NONE    |    NONE    |
          |--------+------------+------------+------------+------------|
          |  12MB  | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 |    NONE    |
          |--------+------------+------------+------------+------------|
          |  14MB  | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 4M x 9 |
          |--------+------------+------------+------------+------------|
          |  16MB  | (2) 4M x 9 | (2) 4M x 9 |    NONE    |    NONE    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          |            Size            |            Bank 0             |
          |----------------------------+-------------------------------|
          |           256KB            |             NONE              |
          |----------------------------+-------------------------------|
          |           512KB            |           (8) 4832            |
          +------------------------------------------------------------+
